Component Description: Park
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Clutch Application Chart
| Gear | Forward (1, 2, 3, 4) | Direct (3, 5, R) | Intermediate (2, 6) | Low / Reverse (1, R) | Overdrive (4, 5, 6) | Low-OWC |
|---|---|---|---|---|---|---|
| Park | H | |||||
| Planetary Components | Front planetary carrier-to-No. 3 sun gear | Front carrier-to-No. 2 sun gear | No. 2 sun gear | Rear planetary carrier | Input shaft-to-rear planetary carrier | Rear planetary carrier |
H = Holding
Solenoid Operation Chart
| Selector Lever Position | Commanded Gear | SSA NL (1, 2, 3, 4) | SSB NH (3, 5, R) | SSC NL (2, 6) | SSD NL (1, R) | SSE NH (4, 5, 6) | TCC NL |
|---|---|---|---|---|---|---|---|
| P | P | Off | On | Off | On | On | Off |
NH = Normally High
NL = Normally Low

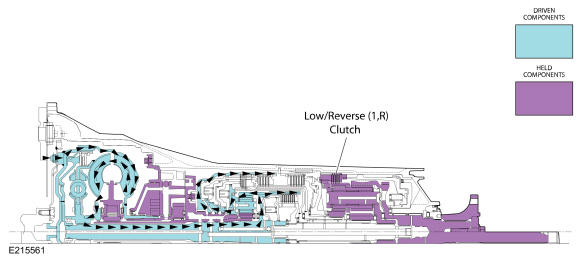

Powerflow
In the PARK position, SSD is commanded ON by the PCM/ TCM to apply the low/reverse (1, R) clutch. The low/reverse (1, R) clutch is applied to hold the rear planetary carrier. In PARK, power is not transferred from the input shaft to the rear planetary gearset. The output shaft is held stationary to the transmission case by the park pawl.
