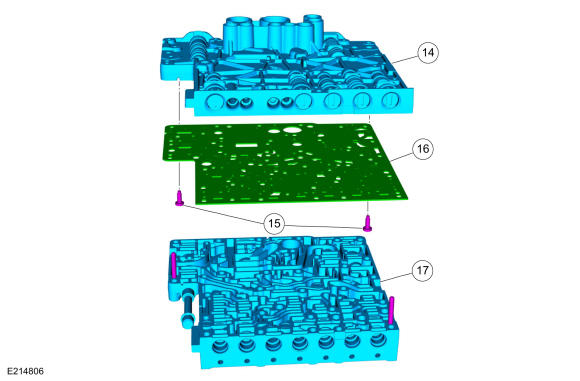

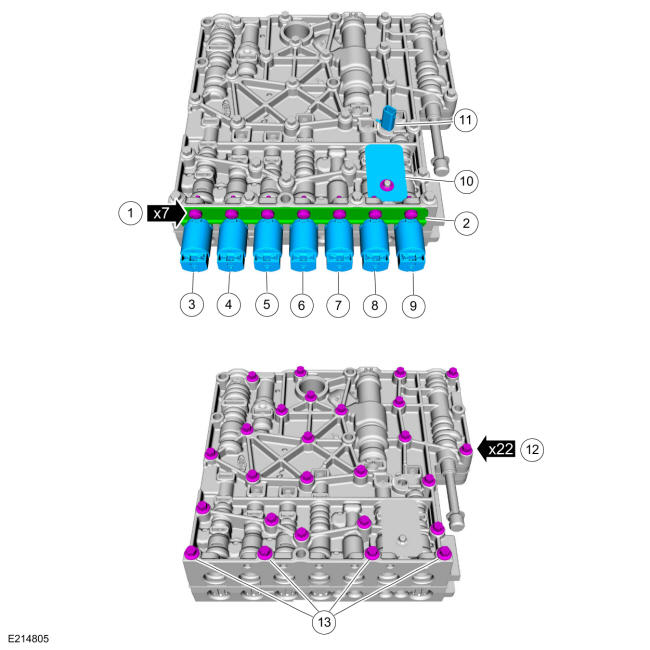

Main Control Valve Body
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

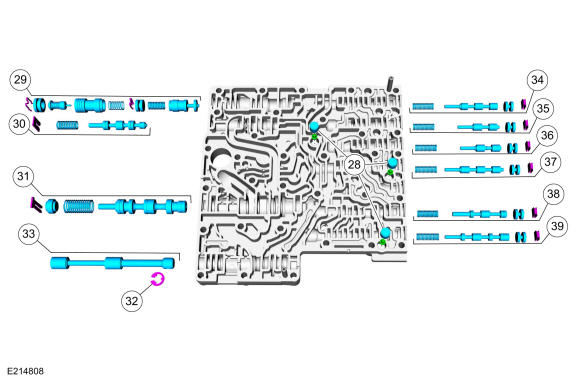

Upper Valve Body

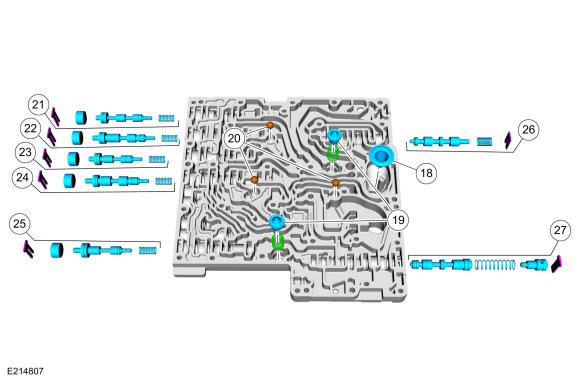

Lower Valve Body
| Item | Description |
|---|---|
| 1 | Solenoid retainer bolts |
| 2 | Solenoid retainer |
| 3 | SSE, Overdrive (4, 5, 6) clutch, normally high |
| 4 | SSC, Intermediate (2, 6) clutch, normally low |
| 5 | SSA, Forward (1, 2, 3, 4) clutch, normally low |
| 6 | SSB, Direct (3, 5, R) clutch, normally high |
| 7 | TCC solenoid, normally low |
| 8 | LPC solenoid, normally high |
| 9 | SSD, Low/reverse (1, R) clutch, normally low |
| 10 | Solenoid body identification tag |
| 11 | TFT sensor |
| 12 | Main control bolts, 45 mm (1.771 in) |
| 13 | Main control bolts, 60 mm (2.362 in) |
| 14 | Upper valve body |
| 15 | Separator plate bolts |
| 16 | Separator plate |
| 17 | Lower valve body |
| 18 | Valve inlet nozzle |
| 19 | Relief valves |
| 20 | Check balls |
| 21 | Overdrive (4, 5, 6) clutch regulator valve |
| 22 | Intermediate (2, 6) clutch regulator valve |
| 23 | Forward (1, 2, 3, 4) clutch regulator valve |
| 24 | Direct (3, 5, R) clutch regulator valve |
| 25 | Low/reverse clutch regulator valve |
| 26 | TCC charge control valve |
| 27 | TCC apply regulator valve |
| 28 | Transmission solenoid damper valve assemblies |
| 29 | Cooler bypass valve |
| 30 | TCC charge limit valve |
| 31 | LPC valve |
| 32 | Manual valve retaining clip |
| 33 | Manual valve |
| 34 | Overdrive (4, 5, 6) clutch latch valve |
| 35 | Intermediate (2, 6) clutch latch valve |
| 36 | Forward (1, 2, 3, 4) clutch latch valve |
| 37 | Direct (3, 5, R) clutch latch valve |
| 38 | Solenoid feed pressure regulator valve |
| 39 | Low/reverse clutch latch valve |
Main Control Valve Body Mechanical Operation
The main control consists of a valve body assembly with solenoids that are controlled by a PCM for gas engine applications and a TCM for diesel engine applications. The PCM or TCM operates the electrical components to provide refined engagement feel, shift feel, and shift scheduling.
