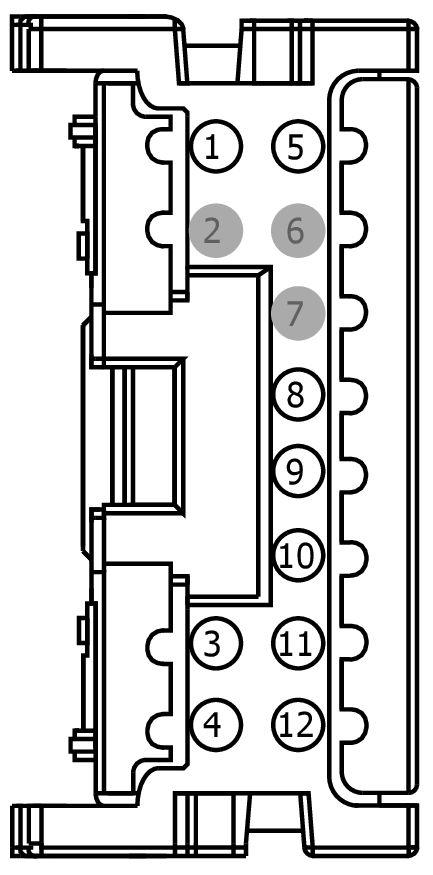

Connector End View (C9224) - IMAGE PROCESSING MODULE A (IPMA)
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C9224 |
IMAGE PROCESSING MODULE A (IPMA) |
GN |
14334 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
RRB08 (BN-VT) |
22 |
CTRL MOD. - LANE DEPARTURE WARNING # HEATER FRONT WINDOW - |
*GU5T-14474-KA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
VMF04 (BN-BU) |
22 |
CTRL MOD. - FORWARD SENSING # FORWARD LOOKING RADAR CAN BUS HIGH |
*GU5T-14474-KA |
| 4 |
CBP36 (BU-BN) |
22 |
FUSE - 36 OR CIRCUIT BREAKER |
*GU5T-14474-KA |
| 5 |
GD348 (BK-YE) |
22 |
GROUND - PILLAR C OR QUARTER PANEL RIGHT |
*GU5T-14474-KA |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
CRB08 (BU-GY) |
22 |
CTRL MOD. - LANE DEPARTURE WARNING # HEATER FRONT WINDOW + |
*GU5T-14474-KA |
| 9 |
VDB26 (GY-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW |
*GU5T-14474-KA |
| 10 |
VDB25 (GN-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH |
*GU5T-14474-KA |
| 11 |
VMF05 (GY-BU) |
22 |
CTRL MOD. - FORWARD SENSING # FORWARD LOOKING RADAR CAN BUS LOW |
*GU5T-14474-KA |
| 12 |
CRB05 (GN-OG) |
22 |
SWITCH - LANE DEPARTURE WARNING (LDW) |
*GU5T-14474-KA |
