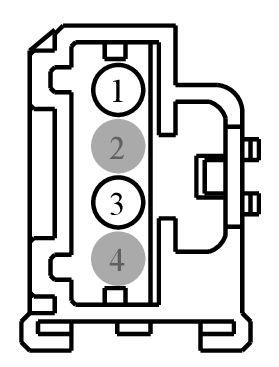

Connector End View (C9046) - HIGH MOUNTED STOPLAMP
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C9046 |
HIGH MOUNTED STOPLAMP |
GY |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 1L2T-14421-AA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
GD348 (BK-YE) |
20 |
GROUND - PILLAR C OR QUARTER PANEL RIGHT |
1L2T-14421-AA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
CLS52 (BN) |
20 |
CTRL MOD. - STOP/TURN RIGHT MIDDLE |
1L2T-14421-AA |
| 4 |
* |
* |
Not Used |
N/A |
