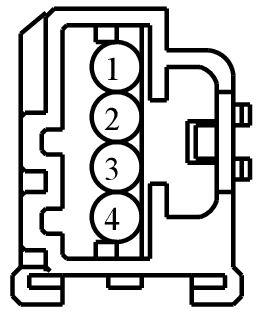

Connector End View (C9045) - HIGH MOUNTED STOPLAMP
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C9045 | HIGH MOUNTED STOPLAMP | BK | 14A005 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 1L2T-14421-BA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD348 (BK-YE) | 22 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | 1L2T-14421-BA | ||||
| 2 | CLN25 (WH-GN) | 22 | RELAY - PUDDLE LAMPS (KERB ILLUM.) | 1L2T-14421-BA | ||||
| 3 | CLS52 (BN) | 22 | CTRL MOD. - STOP/TURN RIGHT MIDDLE | 1L2T-14421-BA | ||||
| 4 | CLS05 (BU-GY) | 22 | CTRL MOD. - PARK | 1L2T-14421-BA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1041
Service Part Number:
9U2Z-14S411-AJA
Gauge:
18
Pin material:
Tin
Cavities:
4
Vehicle Uses:
- Actuator - Door Lock - Decklid/Liftgate
- Switch - Deck Lid / Lift Gate Ajar
