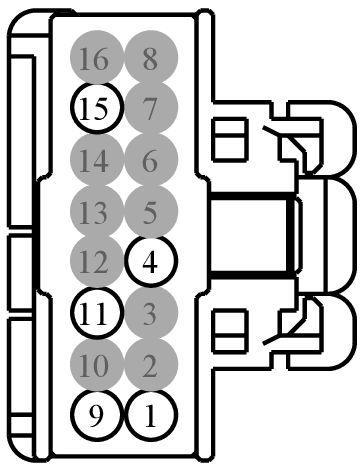

Connector End View (C9039) - AUTO-DIMMING INTERIOR MIRROR
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C9039 | AUTO-DIMMING INTERIOR MIRROR | BK | PIA | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * (BK) | 22 | FUSE - 36 OR CIRCUIT BREAKER | N/A | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | * (GN) | 22 | GROUND - PILLAR C OR QUARTER PANEL RIGHT | N/A | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | * | * | Not Used | N/A | ||||
| 9 | * (RD) | 22 | CTRL MOD. - REVERSE LEFT OR COMMON | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | * (VT) | 22 | CTRL MOD. - ELECTROCHROMIC MIRROR + | N/A | ||||
| 12 | * | * | Not Used | N/A | ||||
| 13 | * | * | Not Used | N/A | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | * (BU) | 22 | CTRL MOD. - ELECTROCHROMIC MIRROR - | N/A | ||||
| 16 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1294
Service Part Number:
CU2Z-14S411-AJA
Gauge:
18
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Mirror - Rearview
- Mirror - Rearview (electrochromatic)
