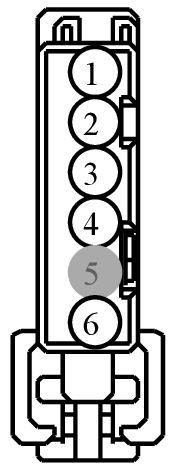

Connector End View (C9026) - RADIO TRANSCEIVER MODULE (RTM)
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C9026 | RADIO TRANSCEIVER MODULE (RTM) | BK | 14A005 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| *9U5T-14474-MA|9U5T-14474-MA | Not Available | |
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD301 (BK-BU) | 22 | GROUND - PILLAR C OR QUARTER PANEL LEFT # 3RD POINT | 3F2T-14474-SA | ||||
| 2 | VPL56 (BU-GY) | 22 | RECEIVER - REMOTE RF | 3F2T-14474-SA | ||||
| 3 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | *9U5T-14474-MA|9U5T-14474-MA | ||||
| 4 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | *9U5T-14474-MA|9U5T-14474-MA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | SBP32 (VT-RD) | 22 | FUSE - 32 OR CIRCUIT BREAKER | 3F2T-14474-SA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1590
Service Part Number:
6U2Z-14S411-LC
Gauge:
20
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Antenna - GPS
- Module - Global Positioning
- Module - Remote Functions Receiver
- Motor - Recline (Third Row)
- Switch - Dimmer
- Switch - Hazard Warning
- Switch - Moon Roof/Sun Roof
- Switch - Multifunction
- Switch - Multifunction (Dimmer)
- Switch - Multifunction (Wiper)
- Switch - Reverse Park Aid
- Switch - Seat (driver)
- Switch - Seat Drivers Side (2nd Row)
- Switch - Spotlight
- Switch - Sunshade
Pigtail Kit Part Number WPT-958
Service Part Number:
6U2Z-14S411-LB
Gauge:
18 20
Pin material:
Tin & Silver
Cavities:
6
Vehicle Uses:
- Antenna - GPS
- Module - Global Positioning
