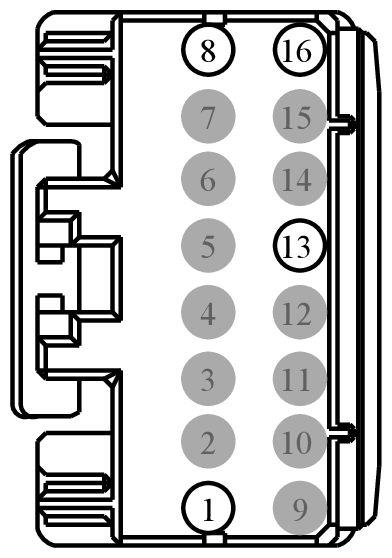

Connector End View (C4803A) - TELEMATICS CONTROL UNIT (TCU) MODULE

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4803A	TELEMATICS CONTROL UNIT (TCU) MODULE	BK	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP10 (YE-RD)	22	FUSE - 10 OR CIRCUIT BREAKER	F58B-14474-BA
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	F58B-14474-BA
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	GD301 (BK-BU)	22	GROUND - PILLAR C OR QUARTER PANEL LEFT # 3RD POINT	F58B-14474-BA
14	*	*	Not Used	N/A
15	*	*	Not Used	N/A
16	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	F58B-14474-BA

Available Pigtail Kits

Pigtail Kit Part Number WPT-242

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-EBA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Module - Lighting Control
Module - Seat Memory
