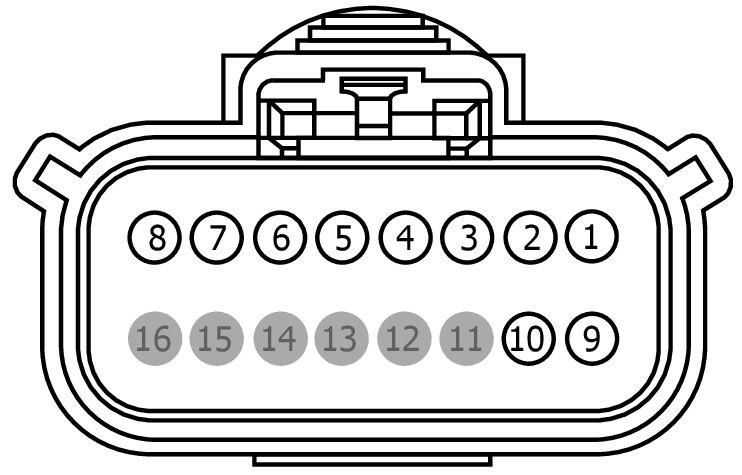

Connector End View (C4484) - REAR LAMP ASSEMBLY RH
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C4484 |
REAR LAMP ASSEMBLY RH |
BK |
13A409 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| JU5T-14474-AAA|JU5T-14474-ABA|BU5T-14474-UA|7C3T-14474-DA |
Not Available |
| JU5T-14474-AAA|BU5T-14474-UA |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
GD406 (BK-YE) |
22 |
GROUND - FRAME REAR RIGHT |
JU5T-14474-AAA|JU5T-14474-ABA|BU5T-14474-UA|7C3T-14474-DA |
| 1 |
GD406 (BK-YE) |
16 |
GROUND - FRAME REAR RIGHT |
JU5T-14474-AAA|JU5T-14474-ABA|BU5T-14474-UA|7C3T-14474-DA |
| 2 |
CLS27 (GN-OG) |
22 |
CTRL MOD. - TURN LAMP RIGHT REAR |
JU5T-14474-AAA|JU5T-14474-ABA|BU5T-14474-UA|7C3T-14474-DA |
| 2 |
CLS27 (GN-OG) |
16 |
CTRL MOD. - TURN LAMP RIGHT REAR |
JU5T-14474-AAA|JU5T-14474-ABA|BU5T-14474-UA|7C3T-14474-DA |
| 3 |
CLS05 (BU-GY) |
22 |
CTRL MOD. - PARK |
JU5T-14474-AAA|JU5T-14474-ABA|BU5T-14474-UA|7C3T-14474-DA |
| 3 |
CLS05 (BU-GY) |
16 |
CTRL MOD. - PARK |
JU5T-14474-AAA|JU5T-14474-ABA|BU5T-14474-UA|7C3T-14474-DA |
| 4 |
CLS10 (GN-BN) |
22 |
CTRL MOD. - REVERSE LEFT OR COMMON |
JU5T-14474-AAA|BU5T-14474-UA |
| 5 |
CBBB3 (WH-BN) |
22 |
FUSE - 15 OR CIRCUIT BREAKER |
JU5T-14474-AAA|BU5T-14474-UA |
| 6 |
VDB06 (GY-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
JU5T-14474-AAA|BU5T-14474-UA |
| 7 |
VDB07 (VT-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
JU5T-14474-AAA|BU5T-14474-UA |
| 8 |
GD481 (BK-GN) |
22 |
GROUND - FRAME MIDDLE RIGHT |
JU5T-14474-AAA|BU5T-14474-UA |
| 8 |
GD481 (BK-GN) |
20 |
GROUND - FRAME MIDDLE RIGHT |
JU5T-14474-AAA|BU5T-14474-UA |
| 9 |
GD406 (BK-YE) |
22 |
GROUND - FRAME REAR RIGHT |
JU5T-14474-AAA|BU5T-14474-UA |
| 10 |
CLS54 (BU-OG) |
22 |
LAMP - TURN REAR RIGHT # SIGNAL OUT |
JU5T-14474-AAA|BU5T-14474-UA |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
