Connector End View (C4396A) - VEHICLE DYNAMICS MODULE (VDM)

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C4396A VEHICLE DYNAMICS MODULE (VDM) BK 14A005 part# N/A See Below

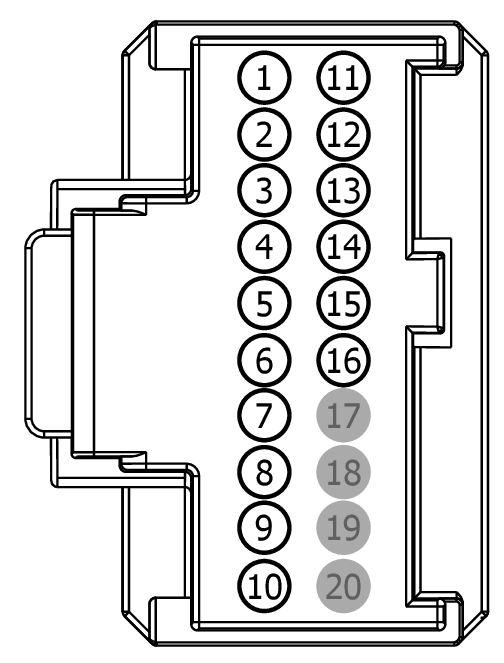

GFDWR83058Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
*9U5T-14474-EB Not Available
9U5T-14474-DB DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CBB14 (VT-OG) 18 FUSE - 14 OR CIRCUIT BREAKER *9U5T-14474-EB
2 CBB14 (VT) 18 FUSE - 14 OR CIRCUIT BREAKER *9U5T-14474-EB
3 VDB25 (GN-OG) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH *9U5T-14474-EB
4 VCD10 (BN) 22 SENSOR - SUSPENSION VERTICAL POSITION (HEIGHT) FRONT LEFT 9U5T-14474-DB
5 RCD28 (WH-VT) 22 CTRL MOD. - SUSPENSION # VERTICAL POSITION (HEIGHT) SENSOR FRONT RIGHT - 9U5T-14474-DB
6 LCD28 (BN-YE) 22 CTRL MOD. - SUSPENSION # VERTICAL POSITION (HEIGHT) SENSOR FRONT RIGHT + 9U5T-14474-DB
7 CCD03 (WH-BU) 18 CTRL MOD. - CCD # SOLENOID DAMPER FRONT LEFT + *9U5T-14474-EB
8 RCD03 (VT-BN) 18 CTRL MOD. - CCD # SOLENOID DAMPER FRONT LEFT - *9U5T-14474-EB
9 CCD04 (GY-YE) 18 CTRL MOD. - CCD # SOLENOID DAMPER FRONT RIGHT + *9U5T-14474-EB
10 RCD04 (BU-OG) 18 CTRL MOD. - CCD # SOLENOID DAMPER FRONT RIGHT - *9U5T-14474-EB
11 GD233 (BK) 18 GROUND - COWL SIDE/PILLAR A LEFT *9U5T-14474-EB
12 GD233 (BK) 18 GROUND - COWL SIDE/PILLAR A LEFT *9U5T-14474-EB
13 VDB26 (GY-BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW *9U5T-14474-EB
14 RCD27 (WH-GN) 22 CTRL MOD. - SUSPENSION # VERTICAL POSITION (HEIGHT) SENSOR FRONT LEFT - 9U5T-14474-DB
15 LCD27 (YE-GY) 22 CTRL MOD. - SUSPENSION # VERTICAL POSITION (HEIGHT) SENSOR FRONT LEFT + 9U5T-14474-DB
16 VCD11 (GY-VT) 22 SENSOR - SUSPENSION VERTICAL POSITION (HEIGHT) FRONT RIGHT 9U5T-14474-DB
17 * * Not Used N/A
18 * * Not Used N/A
19 * * Not Used N/A
20 * * Not Used N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1447

GFDWR12992Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ATA

Gauge:

20

Pin material:

Tin

Cavities:

20

Vehicle Uses:
