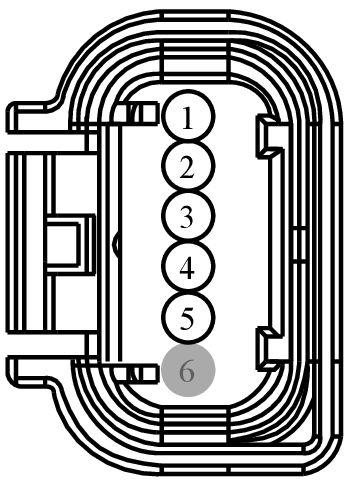

Connector End View (C4360) - REAR PARKING AID CAMERA
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C4360 | REAR PARKING AID CAMERA | BK | 14B562 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| *8U5T-14474-BB | Not Available | |
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CBBB3 (WH-BN) | 20 | FUSE - 15 OR CIRCUIT BREAKER | 8U5T-14474-BB | ||||
| 2 | VMP24 (WH) | 20 | CTRL MOD. - REAR PARK ASSIST CAMERA LIN BUS | 8U5T-14474-BB | ||||
| 3 | RMP19 (BU-GY) | 20 | CAMERA - PARKING AID REAR VIDEO - | 8U5T-14474-BB | ||||
| 4 | VMP19 (WH-GN) | 20 | CAMERA - PARKING AID REAR VIDEO + | 8U5T-14474-BB | ||||
| 5 | DMP19 (BK) | 20 | CAMERA - PARKING AID REAR VIDEO D | *8U5T-14474-BB | ||||
| 6 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1556
Service Part Number:
CU2Z-14S411-AEB
Gauge:
20
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Camera - Front
- Camera - Reverse Park Aid
Pigtail Kit Part Number WPT-1280
Service Part Number:
CU2Z-14S411-AEA
Gauge:
20
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Camera - Reverse Park Aid
