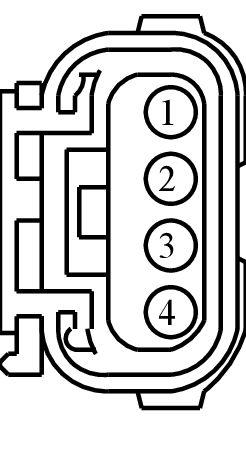

Connector End View (C4350) - WATER-IN-FUEL SENSOR
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C4350 | WATER-IN-FUEL SENSOR | LT GY | 14405 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| F8VB-14474-BA | EU2Z-14474-AA | 2.8 |
| F8VB-14474-AA | EU2Z-14474-AB | 2.8 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | RE407 (YE-VT) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) | F8VB-14474-BA | ||||
| 2 | VE823 (BU-BN) | 18 | SENSOR - WATER IN FUEL + | F8VB-14474-BA | ||||
| 3 | GD480 (BK) | 14 | GROUND - FRAME MIDDLE LEFT | F8VB-14474-AA | ||||
| 4 | CBB48 (GY-YE) | 12 | FUSE - 48 OR CIRCUIT BREAKER | F8VB-14474-AA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1373
Service Part Number:
3U2Z-14S411-DGAB
Gauge:
16
Pin material:
Tin (greased)
Cavities:
4
Vehicle Uses:
- Fuel Pump/Sending Unit
- Module - Fuel Pump Driver
- Sensor - Fuel Level
