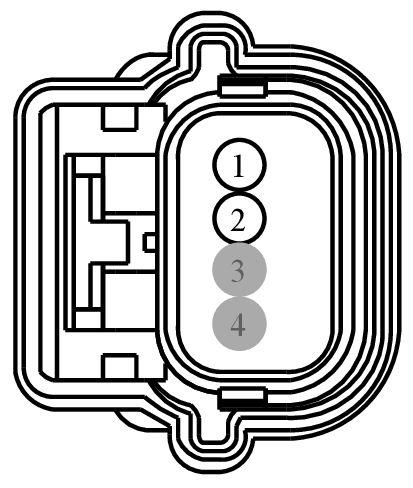

Connector End View (C4321) - KEYLESS ENTRY REAR ANTENNA

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C4321	KEYLESS ENTRY REAR ANTENNA	BK	14B562	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VPK08 (WH-OG)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR +	8U5T-14474-BB
2	RPK08 (YE-GN)	20	CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR -	8U5T-14474-BB
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1307

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AGA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Antenna - Keyless Entry
Sensor - Brake Pedal Position
Sensor - Clutch Master Cylinder
