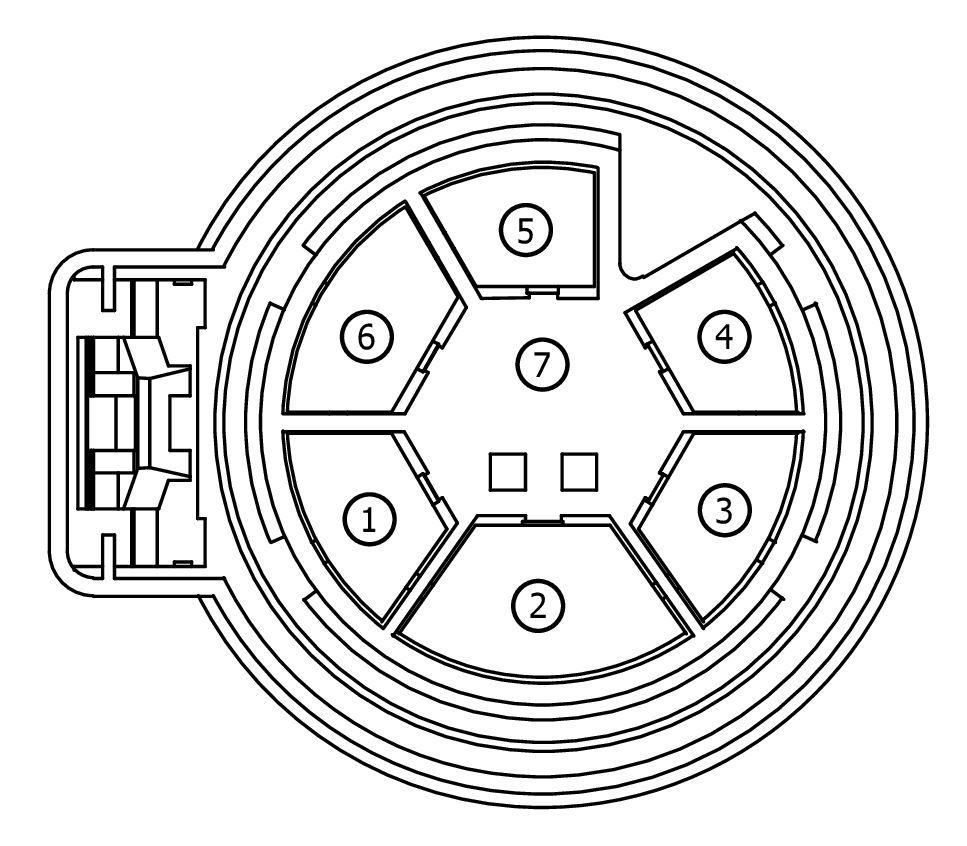

Connector End View (C4099) - TRAILER TOW CONNECTOR
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C4099 | TRAILER TOW CONNECTOR | BK | 13A576 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CAT06 (YE) | 16 | CTRL MOD. - TRAILER TOW # TURN SIGNAL LEFT (COLOR TO SAE 1239) | DU5T-14474-GBB | ||||
| 2 | RAT08 (WH) | 10 | CTRL MOD. - TRAILER TOW # RETURN (USA ONLY- COLOR TO SAE 1239 EXCEPTION TO PSF) | DU5T-14474-TBB | ||||
| 3 | CAT19 (BU) | 12 | CTRL MOD. - TRAILER TOW # BRAKES (COLOR TO SAE 1239) | DU5T-14474-EBB | ||||
| 4 | CAT09 (GN) | 16 | CTRL MOD. - TRAILER TOW # TURN SIGNAL RIGHT (COLOR TO SAE 1239) | DU5T-14474-GBB | ||||
| 5 | CAT14 (OG) | 16 | RELAY - TRAILER TOW BATTERY CHARGING (COLOR TO SAE 1239) | DU5T-14474-GBB | ||||
| 6 | CAT11 (BN) | 16 | CTRL MOD. - TRAILER TOW # PARK LAMPS (COLOR TO SAE 1239) | DU5T-14474-GBB | ||||
| 7 | CAT03 (GY-BN) | 18 | CTRL MOD. - TRAILER TOW # BACKUP LAMPS | DU5T-14474-GBB | ||||

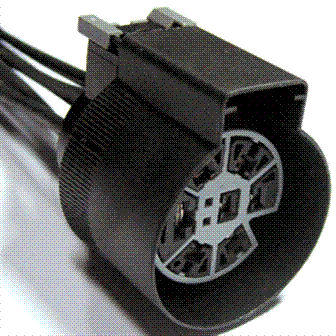

Available Pigtail Kits
Pigtail Kit Part Number WPT-975
Service Part Number:
3U2Z-14S411-JXB
Gauge:
10 12
Pin material:
Tin
Cavities:
7
Vehicle Uses:
- Trailer Tow - Vehicle Side
