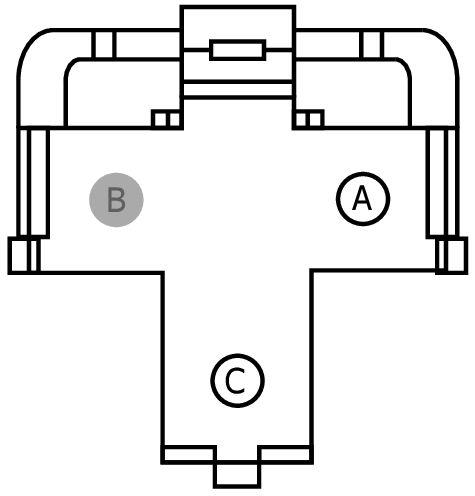

Connector End View (C3737) - SEAT POWER POINT
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C3737 |
SEAT POWER POINT |
DK GY |
15080 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| F8VB-14474-BA |
EU2Z-14474-AA |
2.8 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| A |
CBB51 (BN) |
16 |
FUSE - 51 OR CIRCUIT BREAKER |
F8VB-14474-BA |
| B |
* |
* |
Not Used |
N/A |
| C |
GD238 (BK-WH) |
16 |
GROUND - COWL SIDE/PILLAR A RIGHT |
F8VB-14474-BA |
