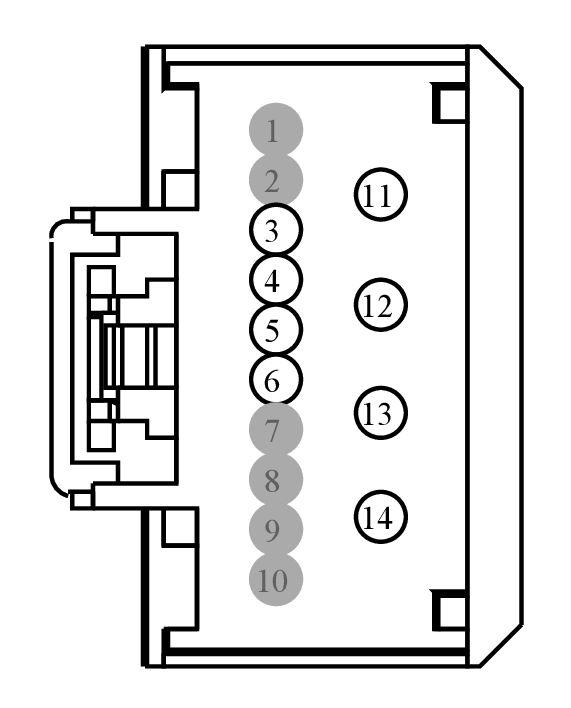

Connector End View (C3501B) - DIRECT CURRENT/ALTERNATING CURRENT (DC/AC) INVERTER

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3501B	DIRECT CURRENT/ALTERNATING CURRENT (DC/AC) INVERTER	NA	14A005	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DB	DU2Z-14474-AA	0.64
3M5T-14474-HAA	DU2Z-14474-EA	2.8
3M5T-14474-HCA	DU2Z-14474-EA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	LYA03 (YE-VT)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR +	9U5T-14474-DB
4	RYA03 (BU-BN)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR -	9U5T-14474-DB
5	RYA03 (BU)	22	CTRL MOD. - DC/AC INVERTER # LED INDICATOR -	9U5T-14474-DB
6	LYA18 (GN-WH)	22	CTRL MOD. - DC/AC INVERTER 2 # LED INDICATOR +	9U5T-14474-DB
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	VMP24 (WH)	22	CTRL MOD. - REAR PARK ASSIST CAMERA LIN BUS	3M5T-14474-HAA
12	CBP23 (BN-YE)	22	FUSE - 23 OR CIRCUIT BREAKER	3M5T-14474-HAA
13	HYA01 (OG-GN)	18	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A)	3M5T-14474-HCA
13	HYA01 (OG-GN)	16	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT A (AC A)	3M5T-14474-HCA
14	HYA02 (OG-WH)	18	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B)	3M5T-14474-HCA
14	HYA02 (OG-WH)	16	CTRL MOD. - DC/AC INVERTER # ALTERNATING CURRENT OUTPUT B (AC B)	3M5T-14474-HCA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1552

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ANA

Gauge:

14 20

Pin material:

Tin

Cavities:

Vehicle Uses:

Inverter - DC to AC
Radio - Amplifier
Speaker - Subwoofer
