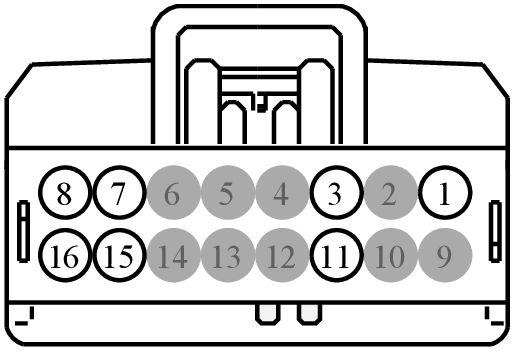

Connector End View (C3385) - DRIVER MULTI-CONTOUR SEAT MODULE [SCMG]

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C3385	DRIVER MULTI-CONTOUR SEAT MODULE [SCMG]	BK	14D232	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBX06 (GY-RD)	18	POWER - SEAT # HEATED SEAT MODULE	N/A
2	*	*	Not Used	N/A
3	CPT05 (YE)	20	MOTOR FEED	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	VDB07 (VT-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	N/A
8	VDB06 (GY-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	CPS95 (GN-VT)	20	SWITCH - SEAT MULTICONTOUR # MORE (LMR)	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	*	*	Not Used	N/A
15	CPS96 (WH-OG)	20	SWITCH - SEAT MULTICONTOUR # LESS (LLS)	N/A
16	GD904 (BK-BU)	18	GROUND	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1585

Service Part Number:

KU2Z-14S411-FB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Module - Audio Control
Module - Seat Multi Contour

Pigtail Kit Part Number WPT-1579
