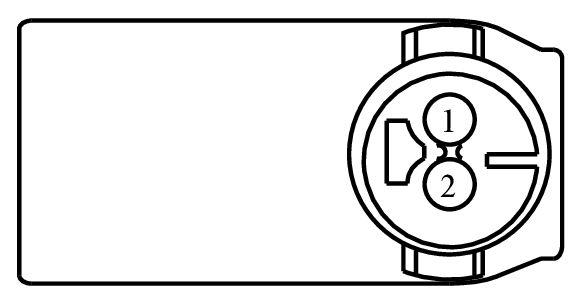

Connector End View (C3321) - LH SIDE AIR CURTAIN
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3321 | LH SIDE AIR CURTAIN | BK | 14A005 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| P/O ASSEMBLY | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR109 (BN-BU) | 20 | CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE + | P/O ASSEMBLY | ||||
| 2 | RR109 (BU-GN) | 20 | CTRL MOD. - INFLATABLE CURTAIN DRIVER SIDE - | P/O ASSEMBLY | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1225
Service Part Number:
BU2Z-14S411-BHA
Gauge:
20
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses:
- Airbag - Side Curtain
- Pretensioner - Seat Belt (Driver)
- Pretensioner - Seat Belt (Passenger)
- Sensor - Side Impact
- Squib - Airbag (Driver)
- Squib - Airbag (Passenger)
