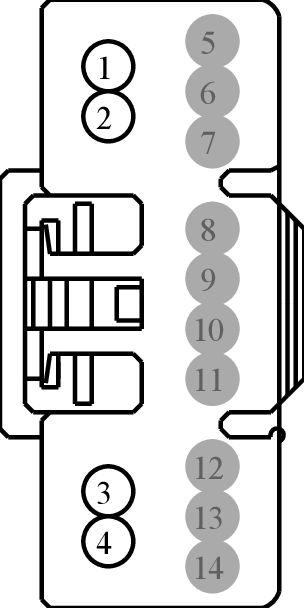

Connector End View (C3313A) - RUNNING BOARD CONTROL MODULE (RBM)
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3313A | RUNNING BOARD CONTROL MODULE (RBM) | GY | 14B079 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3M5T-14474-HAA | DU2Z-14474-EA | 2.8 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CPR41 (BU-WH) | 20 | CTRL MOD. - POWER RUNNING BOARDS # DRIVER DEPLOY | 3M5T-14474-HAA | ||||
| 2 | CPR42 (WH) | 20 | CTRL MOD. - POWER RUNNING BOARDS # DRIVER STOW | 3M5T-14474-HAA | ||||
| 3 | CPR45 (VT-GY) | 20 | CTRL MOD. - POWER RUNNING BOARDS # PASSENGER STOW | 3M5T-14474-HAA | ||||
| 4 | CPR44 (BN-WH) | 20 | CTRL MOD. - POWER RUNNING BOARDS # PASSENGER DEPLOY | 3M5T-14474-HAA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | * | * | Not Used | N/A | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | * | * | Not Used | N/A | ||||
| 13 | * | * | Not Used | N/A | ||||
| 14 | * | * | Not Used | N/A | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1622
Service Part Number:
LU2Z-14S411-AA
Gauge:
14 20
Pin material:
Tin (greased)
Cavities:
14
Vehicle Uses:
- Module - Power Moonroof
- Module - Running Board
- Switch - Moon Roof/Sun Roof
