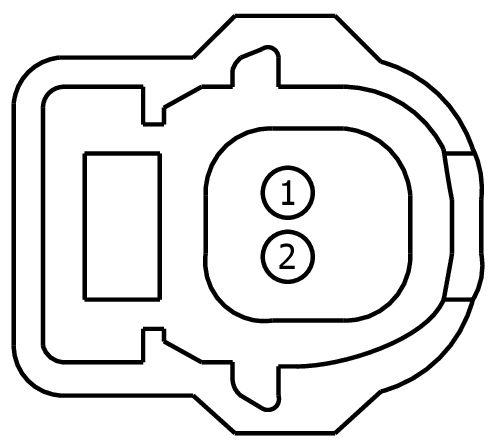

Connector End View (C3248) - SIDE IMPACT SENSOR LH
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3248 | SIDE IMPACT SENSOR LH | BK | 14A005 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| EU5T-14474-CA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VR217 (GY-YE) | 20 | SENSOR - SIDE IMPACT FRONT DRIVER SIDE | EU5T-14474-CA | ||||
| 2 | RR131 (VT-GY) | 20 | CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE - | EU5T-14474-CA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1314
Service Part Number:
8U2Z-14S411-AAC
Gauge:
20
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Sensor - Crash (Engine Compartment)
- Sensor - Seat Track Position
- Sensor - Side Impact
- Solenoid - Down Shift
- Solenoid - Torque Control Coupling
- Valve - Heated PCV
- Valve - Heater Core Shut Off
- Valve - Transmission Fluid Warmer
