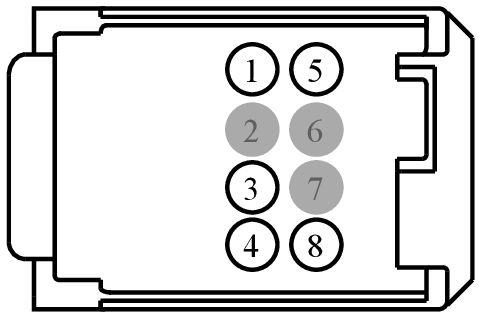

Connector End View (C3154C) - AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C3154C | AUDIO DIGITAL SIGNAL PROCESSING (DSP) MODULE | BK | 14A005 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-EB | DU2Z-14474-AA | 0.64 |
| 9U5T-14474-DB | DU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD347 (BK-VT) | 18 | GROUND - PILLAR C OR QUARTER PANEL LEFT | 9U5T-14474-EB | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | SME56 (BN) | 22 | CTRL MOD. - AUDIO HEAD UNIT # AMPLIFIER ENABLE 2 | 9U5T-14474-DB | ||||
| 4 | SBB22 (BN-RD) | 18 | FUSE - 22 OR CIRCUIT BREAKER | 9U5T-14474-EB | ||||
| 5 | GD347 (BK-VT) | 18 | GROUND - PILLAR C OR QUARTER PANEL LEFT | 9U5T-14474-EB | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | SBB22 (BN-RD) | 18 | FUSE - 22 OR CIRCUIT BREAKER | 9U5T-14474-EB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1457
Service Part Number:
FU2Z-14S411-AVA
Gauge:
20
Pin material:
Tin
Cavities:
8
Vehicle Uses:
- Module - Front Interface
- Radio - Amplifier
