Connector End View (C3133) - INLINE

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C3133	INLINE	BK	15080/14B07914A005	See Below

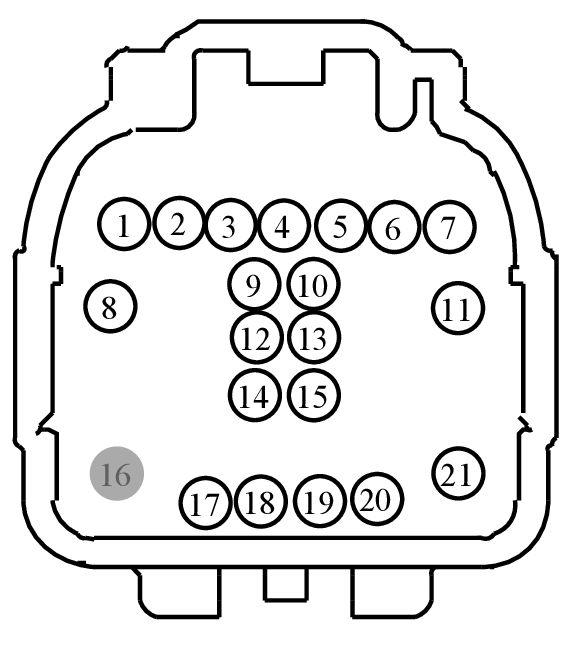

MALE

Harness

15080/14B079

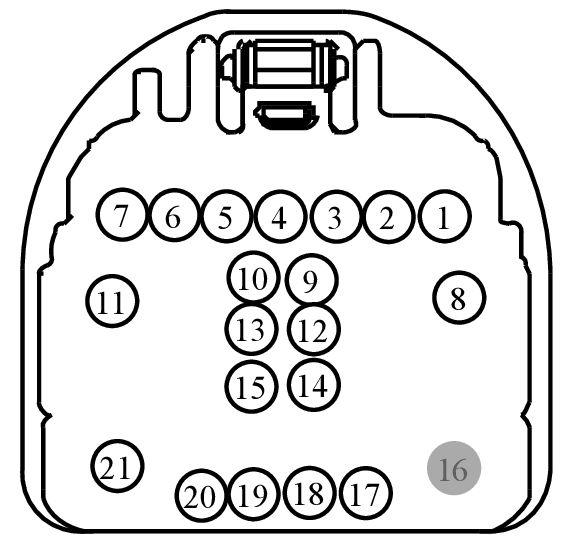

FEMALE

Harness

14A005

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14421-BA\|DU5T-14421-FA	Not Available
*8U5T-14474-BB\|8U5T-14474-BB	Not Available
DU5T-14421-FA	EU2Z-14421-BA	0.64
9U5T-14421-BA	EU2Z-14421-BA	0.64
AU5T-14421-EA	EU2Z-14421-CA	1.5
9U5T-14421-CA	EU2Z-14421-BA	0.64
8U5T-14474-BB	DU2Z-14474-CA	0.64
EU5T-14421-BA	EU2Z-14421-DA	2.8
8U5T-14474-CB	DU2Z-14474-CA	0.64
EU5T-14474-FA	EU2Z-14474-AA	2.8
*EU5T-14421-BA	Not Available

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBX07 (GN-RD)	22	DU5T-14421-FA
1	LME89 (YE-BU)	22	DU5T-14421-FA
2	CRB05 (GN-OG)	22	DU5T-14421-FA
2	RME89 (WH-BU)	22	DU5T-14421-FA
3	CLN09 (YE-GN)	22	DU5T-14421-FA
4	CBB58 (GY-OG)	20	9U5T-14421-BA
5	LYA18 (GN-WH)	22	DU5T-14421-FA
6	HYA02 (OG-WH)	18	9U5T-14421-CA
7	HYA01 (OG-GN)	18	9U5T-14421-CA
8	CBB51 (BN)	16	AU5T-14421-EA
9	VPK07 (BU-GY)	20	9U5T-14421-BA
10	RPK07 (GN-OG)	20	9U5T-14421-BA
11	CBB08 (GY-YE)	16	AU5T-14421-EA
12	CHS31 (YE-OG)	22	9U5T-14421-BA\|DU5T-14421-FA
12	DME45 (BK)	20	9U5T-14421-BA\|DU5T-14421-FA
13	CHS80 (BU-OG)	22	DU5T-14421-FA
13	VME46 (BU-GN)	22	DU5T-14421-FA
14	CHS53 (WH-BN)	22	DU5T-14421-FA
14	RME45 (YE-GN)	22	DU5T-14421-FA
15	CHS52 (BU)	22	DU5T-14421-FA
15	VME45 (BU)	22	DU5T-14421-FA
16	*	*	N/A
17	CHS48 (YE)	22	DU5T-14421-FA
18	CHS49 (GN-BU)	22	DU5T-14421-FA
19	CLN09 (YE-GN)	22	DU5T-14421-FA
20	RYA03 (BU-BN)	22	DU5T-14421-FA
21	GD238 (BK-WH)	14	EU5T-14421-BA
21	GD238 (BK-WH)	16	*EU5T-14421-BA

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	CBX07 (GN-RD)	22	8U5T-14474-BB
1	LME89 (YE-BU)	22	8U5T-14474-BB
2	CRB05 (GN-OG)	22	8U5T-14474-BB
2	RME89 (WH-BU)	22	8U5T-14474-BB
3	CLN09 (YE-GN)	22	8U5T-14474-BB
4	CBB58 (GY-OG)	22	8U5T-14474-BB
5	LYA18 (GN-WH)	22	8U5T-14474-BB
6	HYA02 (OG-WH)	18	8U5T-14474-CB
7	HYA01 (OG-GN)	18	8U5T-14474-CB
8	CBB51 (BN)	16	7C3T-14474-DA
9	VPK07 (BU-GY)	22	8U5T-14474-BB
10	RPK07 (GN-OG)	22	8U5T-14474-BB
11	CBB08 (GY-YE)	16	7C3T-14474-DA
12	CHS31 (YE-OG)	22	*8U5T-14474-BB\|8U5T-14474-BB
12	DME45 (*)	22	*8U5T-14474-BB\|8U5T-14474-BB
13	CHS80 (BU-OG)	22	8U5T-14474-BB
13	VME46 (BU-GN)	22	8U5T-14474-BB
14	CHS53 (WH-BN)	22	8U5T-14474-BB
14	RME45 (YE-GN)	22	8U5T-14474-BB
15	CHS52 (BU)	22	8U5T-14474-BB
15	VME45 (BU)	22	8U5T-14474-BB
16	*	*	N/A
17	CHS48 (YE)	22	8U5T-14474-BB
18	CHS49 (GN-BU)	22	8U5T-14474-BB
19	CLN09 (YE-GN)	22	8U5T-14474-BB
20	RYA03 (BU)	22	8U5T-14474-BB
20	RYA03 (BU-BN)	22	8U5T-14474-BB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1561

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-ARA

Gauge:

14 16 20

Pin material:

Tin

Cavities:

Vehicle Uses:

Connector - Inline

Pigtail Kit Part Number WPT-1425

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-RA

Gauge:

14 16 20

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Connector - Inline

Pigtail Kit Part Number WPT-1559

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-RB

Gauge:

14 16 20

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Connector - Inline
