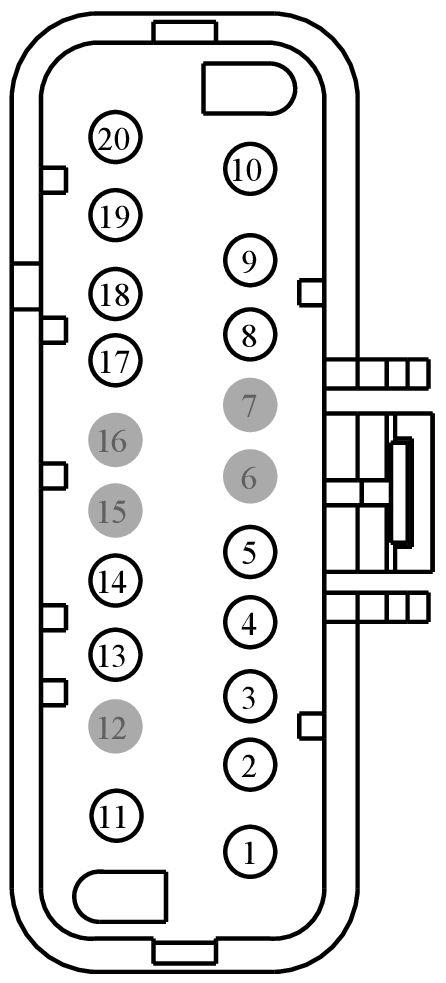

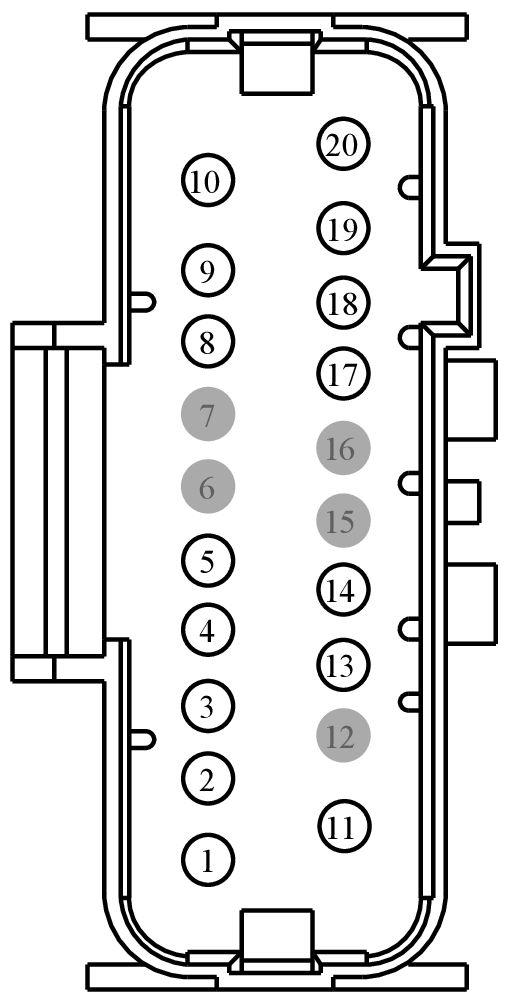

Connector End View (C3052) - INLINE

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C3052	INLINE	BK	14D23314D230	Not Available

MALE

Harness

14D233

FEMALE

Harness

14D230

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14421-AAB	Not Available
97BG-14421-ABB	Not Available
7C3T-14474-CA	DU2Z-14474-DA	1.5
97BG-14421-BCA	EU2Z-14421-EA	2.8

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	GD904 (BK-BU)	16	N/A
2	CPS95 (GN-VT)	20	N/A
3	CPS96 (WH-OG)	20	N/A
4	VDB06 (GY-OG)	20	N/A
5	VDB07 (VT-OG)	20	N/A
6	VPS12 (GY-OG)	20	97BG-14421-AAB
6	VPS12 (VT-OG)	20	97BG-14421-AAB
7	RPS12 (GN-OG)	20	N/A
7	RPS12 (YE-VT)	20	N/A
8	CPS18 (BN-GN)	18	97BG-14421-ABB
9	CPS19 (GY-VT)	18	N/A
10	CPS08 (VT-OG)	14	97BG-14421-BCA
11	CPS07 (GY-BN)	14	N/A
12	*	*	N/A
13	RHS08 (VT-WH)	20	N/A
14	RHS02 (BU-OG)	16	N/A
14	RHS07 (BU)	16	N/A
15	*	*	N/A
16	*	*	N/A
17	VHS21 (BU-WH)	20	97BG-14421-AAB
18	CHS12 (YE-GN)	16	N/A
19	CHS08 (BN-YE)	20	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	GD904 (BK-BU)	16	N/A
2	CPS95 (GN-VT)	20	N/A
3	CPS96 (WH-OG)	20	N/A
4	VDB06 (GY-OG)	20	N/A
5	VDB07 (VT-OG)	20	N/A
6	*	*	N/A
7	*	*	N/A
8	CPS18 (BN-GN)	18	N/A
9	CPS19 (GY-VT)	18	N/A
10	CPS30 (VT-BN)	14	N/A
11	CPS29 (WH-BN)	14	N/A
12	*	*	N/A
13	RHS08 (VT-WH)	20	7C3T-14474-CA
14	GD904 (BK-BU)	16	7C3T-14474-DA
14	RHS07 (BU)	16	7C3T-14474-DA
15	*	*	N/A
16	*	*	N/A
17	VHS21 (BU-WH)	20	N/A
18	CHS12 (YE-GN)	16	N/A
19	CHS08 (BN-YE)	20	7C3T-14474-CA
