Connector End View (C3050) - INLINE

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Inline:	Description	Color	Harness	Base Part #	Service Pigtail
C3050	INLINE	BK	14D23214D231	Not Available

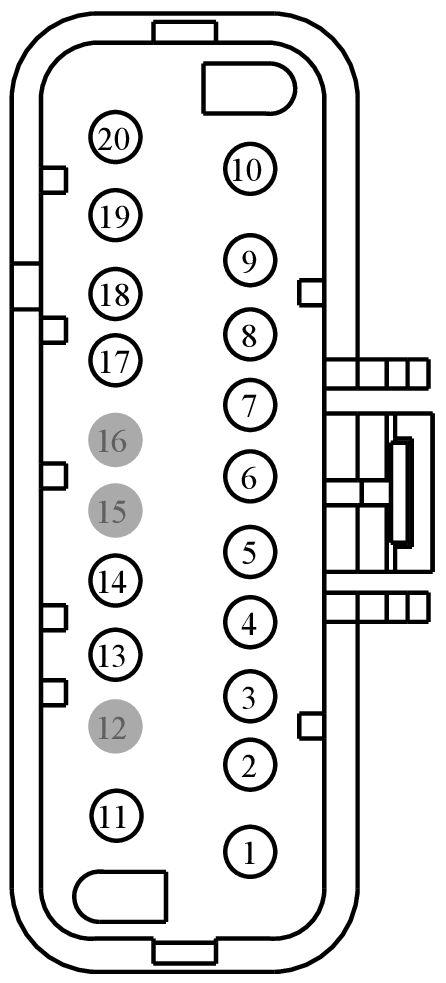

MALE

Harness

14D232

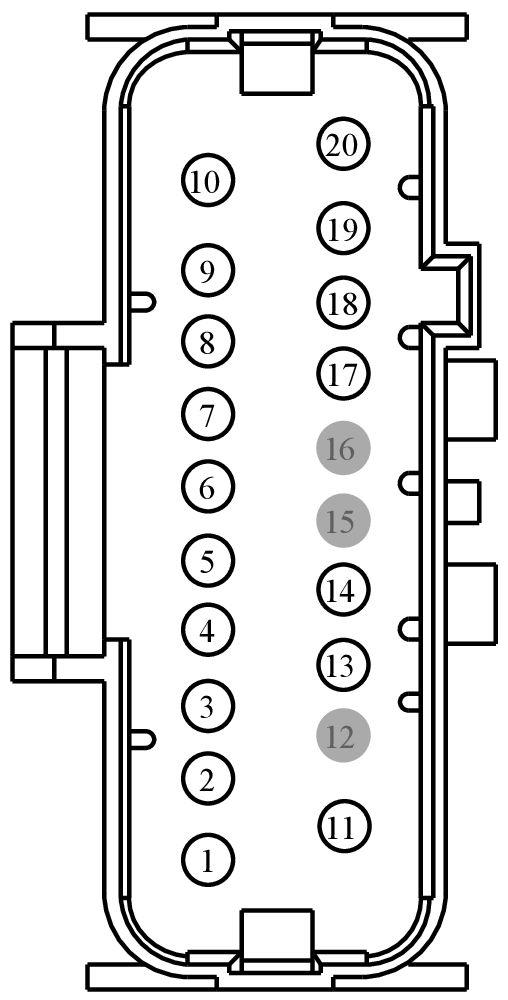

FEMALE

Harness

14D231

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
7C3T-14474-CA	DU2Z-14474-DA	1.5
3M5T-14474-HBA	DU2Z-14474-EA	2.8

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	GD904 (BK-BU)	16	N/A
2	CPS95 (GN-VT)	20	N/A
3	CPS96 (WH-OG)	20	N/A
4	VDB06 (GY-OG)	20	N/A
5	VDB07 (VT-OG)	20	N/A
6	VPS12 (GY-OG)	20	N/A
6	VPS12 (VT-OG)	20	N/A
7	RPS12 (GN-OG)	20	N/A
8	CPS18 (BN-GN)	18	N/A
9	CPS19 (GY-VT)	18	N/A
10	CPS07 (GY-BN)	14	N/A
11	CPS08 (VT-OG)	14	N/A
12	*	*	N/A
13	RHS03 (GY-OG)	20	N/A
14	RHS02 (BU-OG)	16	N/A
15	*	*	N/A
16	*	*	N/A
17	VHS16 (BU-GN)	20	N/A
18	CHS12 (YE-GN)	16	N/A
19	CHS03 (GN-BN)	20	N/A

Pin	Circuit	Gauge	Qualifier	Terminal Part Number
1	GD904 (BK-BU)	16	7C3T-14474-DA
2	CPS95 (GN-VT)	20	7C3T-14474-CA
3	CPS96 (WH-OG)	20	7C3T-14474-CA
4	VDB06 (GY-OG)	20	7C3T-14474-CA
5	VDB07 (VT-OG)	20	7C3T-14474-CA
6	VPS12 (GY-OG)	20	7C3T-14474-CA
7	RPS12 (YE-VT)	20	7C3T-14474-CA
8	CPS18 (BN-GN)	18	7C3T-14474-DA
9	CPS19 (GY-VT)	18	7C3T-14474-DA
10	CPS07 (GY-BN)	14	3M5T-14474-HBA
10	CPS29 (WH-BN)	14	3M5T-14474-HBA
11	CPS08 (VT-OG)	14	3M5T-14474-HBA
11	CPS30 (VT-BN)	14	3M5T-14474-HBA
12	*	*	N/A
13	RHS03 (GY-OG)	20	7C3T-14474-CA
14	GD904 (BK-BU)	14	7C3T-14474-DA
14	RHS02 (BU-OG)	16	7C3T-14474-DA
15	*	*	N/A
16	*	*	N/A
17	VHS16 (BU-GN)	20	7C3T-14474-CA
18	CHS12 (YE-GN)	16	7C3T-14474-DA
19	CHS03 (GN-BN)	20	7C3T-14474-CA
