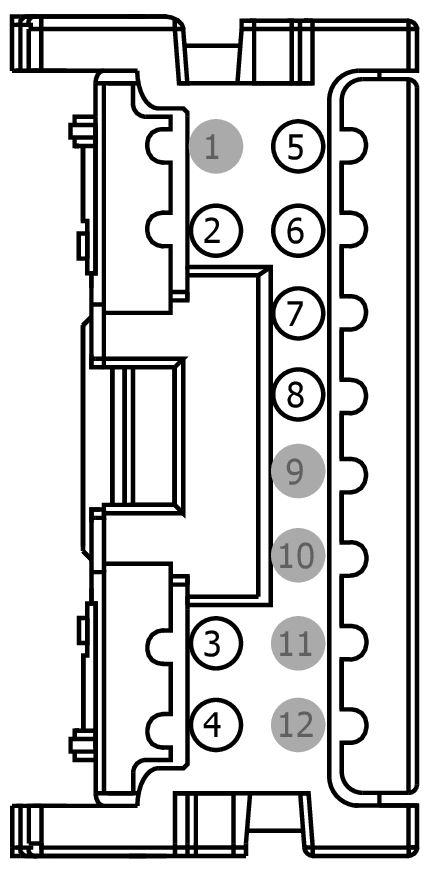

Connector End View (C2998) - STEERING WHEEL MULTIFUNCTION SWITCH LH
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2998 |
STEERING WHEEL MULTIFUNCTION SWITCH LH |
BK |
14672 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
GD215 (*) |
* |
GROUND |
N/A |
| 3 |
LX103 (*) |
* |
A/D CHANNEL 1 |
N/A |
| 4 |
LX104 (*) |
* |
A/D CHANNEL 2 |
N/A |
| 5 |
RX101 (*) |
* |
A/D RETURN |
N/A |
| 6 |
LX105 (*) |
* |
A/D CHANNEL 3 |
N/A |
| 7 |
LX106 (*) |
* |
A/D CHANNEL 4 |
N/A |
| 8 |
VLN04 (*) |
* |
CTRL MOD. - IP/SWITCH ILLUMINATION |
N/A |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
* |
* |
Not Used |
N/A |
