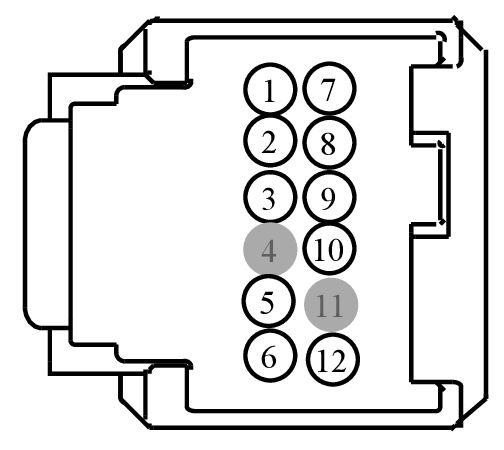

Connector End View (C2512B) - IMAGE PROCESSING MODULE B (IPMB)

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2512B	IMAGE PROCESSING MODULE B (IPMB)	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
*9U5T-14474-EB	Not Available
9U5T-14474-DB	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	DMP36 (BK)	20	CTRL MOD. - CAMERA SIDE 360 LEFT D	9U5T-14474-DB
2	VMP37 (BN-WH)	22	CAMERA - SIDE 360 LEFT VIDEO-	9U5T-14474-DB
3	VMP36 (GY)	22	CAMERA - SIDE 360 LEFT VIDEO+	9U5T-14474-DB
4	*	*	Not Used	N/A
5	VMP42 (BN-GN)	22	CAMERA - FRONT 360 VIDEO-	9U5T-14474-DB
6	VMP41 (YE)	22	CAMERA - FRONT 360 VIDEO+	9U5T-14474-DB
7	DMP34 (BK)	20	CTRL MOD. - CAMERA SIDE 360 RIGHT D	9U5T-14474-DB
8	VMP35 (VT-BN)	22	CAMERA - SIDE 360 RIGHT VIDEO-	9U5T-14474-DB
9	VMP34 (GN-VT)	22	CAMERA - SIDE 360 RIGHT VIDEO+	9U5T-14474-DB
10	CMP33 (BU)	22	CTRL MOD. - CAMERA SIDE 360 # POWER	*9U5T-14474-EB
11	*	*	Not Used	N/A
12	DMP41 (BK)	20	CAMERA - FRONT 360 VIDEO D	9U5T-14474-DB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1401

Courtesy of FORD MOTOR COMPANY

Service Part Number:

EU2Z-14S411-SA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Module - Climate Control Seat
Module - Heated Seat (Rear)
Module - Image Processing
Module - Media Gateway
Module - Power Steering
Monitor - Video/DVD
