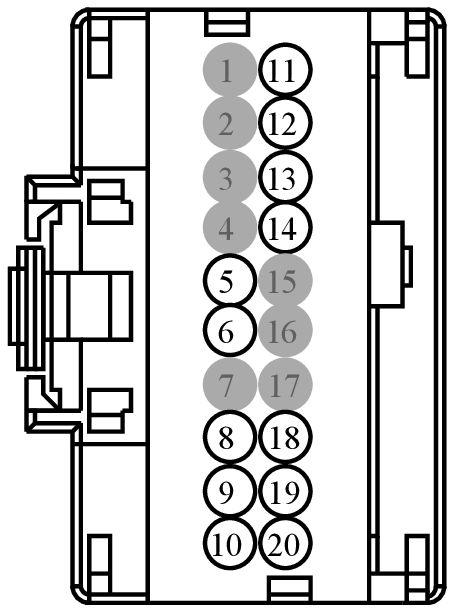

Connector End View (C2512A) - IMAGE PROCESSING MODULE B (IPMB)

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2512A	IMAGE PROCESSING MODULE B (IPMB)	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
*9U5T-14474-EB	Not Available
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	CMP40 (WH-GN)	22	SWITCH - FRONT 360 CAMERA ENABLE	8U5T-14474-BB
6	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	8U5T-14474-BB
7	*	*	Not Used	N/A
8	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	*9U5T-14474-EB
9	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	*9U5T-14474-EB
10	CBBB3 (WH-BN)	22	FUSE - 15 OR CIRCUIT BREAKER	8U5T-14474-BB
11	DMP19 (BK)	20	CAMERA - PARKING AID REAR VIDEO D	8U5T-14474-BB
12	RMP19 (BU-GY)	22	CAMERA - PARKING AID REAR VIDEO -	8U5T-14474-BB
13	VMP19 (WH-GN)	22	CAMERA - PARKING AID REAR VIDEO +	8U5T-14474-BB
14	VMP24 (WH)	22	CTRL MOD. - REAR PARK ASSIST CAMERA LIN BUS	8U5T-14474-BB
15	*	*	Not Used	N/A
16	*	*	Not Used	N/A
17	*	*	Not Used	N/A
18	DMP43 (BK)	20	CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT D	8U5T-14474-BB
19	VMP44 (VT-GY)	22	CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT -	8U5T-14474-BB
20	VMP43 (GN-BU)	22	CTRL MOD. - IMAGE PROCESSING B # VIDEO OUT +	8U5T-14474-BB

Available Pigtail Kits

Pigtail Kit Part Number WPT-1542

Courtesy of FORD MOTOR COMPANY

Service Part Number:

JU2Z-14S411-YA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Control Head - Manual Climate
Module - Driver Door
Module - Electronic Automatic Temperature Control (EATC)
Module - Front Interface
Module - Passenger Door
