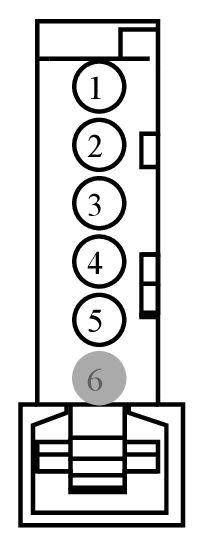

Connector End View (C2489) - INSTRUMENT PANEL SWITCH PACK
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2489 |
INSTRUMENT PANEL SWITCH PACK |
BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 3F2T-14474-SA |
DU2Z-14474-BA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
CE469 (BN) |
22 |
CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR |
3F2T-14474-SA |
| 2 |
CMP40 (WH-GN) |
22 |
SWITCH - FRONT 360 CAMERA ENABLE |
3F2T-14474-SA |
| 3 |
GD216 (BK-VT) |
22 |
GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT |
3F2T-14474-SA |
| 4 |
CH253 (WH) |
22 |
CTRL MOD. - CLIMATE # START/STOP SWITCH DISABLE |
3F2T-14474-SA |
| 5 |
VLN04 (VT-GY) |
22 |
CTRL MOD. - IP/SWITCH ILLUMINATION |
3F2T-14474-SA |
| 6 |
* |
* |
Not Used |
N/A |
