Connector End View (C2434) - STEERING COLUMN LOCK MODULE

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2434	STEERING COLUMN LOCK MODULE	LT GY	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-AAB	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBB46 (WH-BU)	22	FUSE - 46 OR CIRCUIT BREAKER	97BG-14474-AAB
2	VDN02 (GN-OG)	22	CTRL MOD. - LIN BUS # BCM 2	97BG-14474-AAB
3	GD214 (BK-BU)	22	GROUND - INSTRUMENT PANEL STRUCTURE	97BG-14474-AAB

Available Pigtail Kits

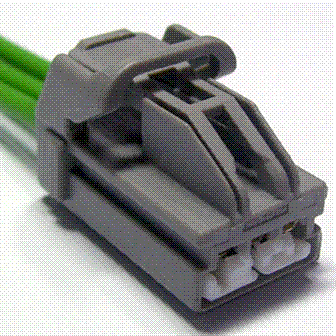

Pigtail Kit Part Number WPT-1147

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BHAB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Motor - Rear Window Wiper
Motor - Seat Recline
Refrigerator
