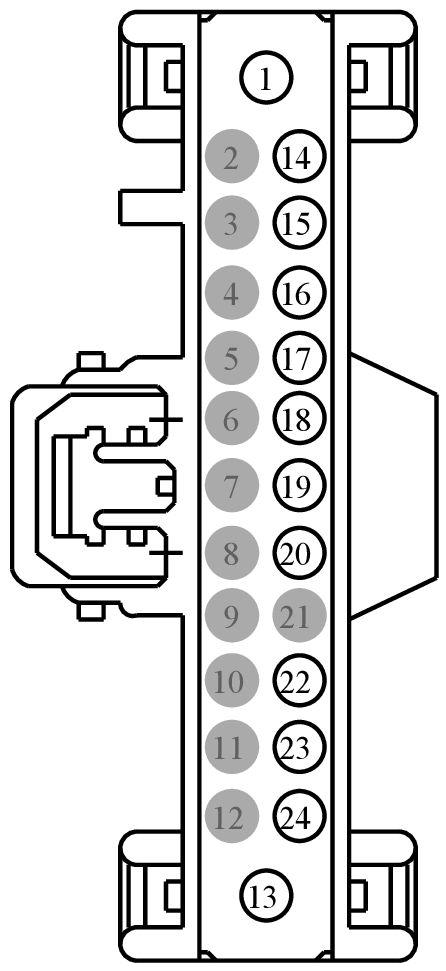

Connector End View (C2431) - GATEWAY MODULE A (GWM)

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2431	GATEWAY MODULE A (GWM)	BK	14G602	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3M5T-14474-HAA	DU2Z-14474-EA	2.8
8U5T-14474-BB	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	GD215 (BK-GY)	22	GROUND	all others	3M5T-14474-HAA
1	GND (BK)	20	GROUND	telematics-Fleet	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	SBP15 (WH-RD)	22	FUSE - 15 OR CIRCUIT BREAKER	all others	3M5T-14474-HAA
13	VB1 (VT-RD)	20	FUSE - 15 OR CIRCUIT BREAKER	telematics-Fleet	N/A
14	SIGGND (BK-GY)	20	GROUND	telematics-Fleet	N/A
14	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	all others	8U5T-14474-BB
15	VDB30 (WH-GN)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	all others	8U5T-14474-BB
15	HS3CANM (WH-GN)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) LOW	telematics-Fleet	N/A
16	HS3CANP (GN-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	telematics-Fleet	N/A
16	VDB29 (GN-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 3 (LOWER) HIGH	all others	8U5T-14474-BB
17	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	all others	8U5T-14474-BB
17	HS2CANM (GY-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	telematics-Fleet	N/A
18	HS2CANP (GN-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	telematics-Fleet	N/A
18	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	all others	8U5T-14474-BB
19	HS1CANM (WH-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	telematics-Fleet	N/A
19	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	all others	8U5T-14474-BB
20	VDB04 (BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	all others	8U5T-14474-BB
20	HS1CANP (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	telematics-Fleet	N/A
21	*	*	Not Used	N/A
22	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	all others	8U5T-14474-BB
22	MS1CANM (VT-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	telematics-Fleet	N/A
23	MS1CANP (GY-OG)	20	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	telematics-Fleet	N/A
23	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	all others	8U5T-14474-BB
24	SBP12 (GN-RD)	22	FUSE - 12 OR CIRCUIT BREAKER	all others	8U5T-14474-BB
24	VQMVB (GN-RD)	20	FUSE - 12 OR CIRCUIT BREAKER	telematics-Fleet	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1533

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ALB

Gauge:

14 20

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

DVD Player
Module - Audio Control
Module - Body Control
Module - Fuel and Damper Control
Module - Gateway
Radio
Test Connector - Diagnostic

Pigtail Kit Part Number WPT-1440

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ALA

Gauge:

14 20

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

DVD Player
Module - Audio Control
Module - Body Control
Module Gateway
Radio
Test Connector - Diagnostic
