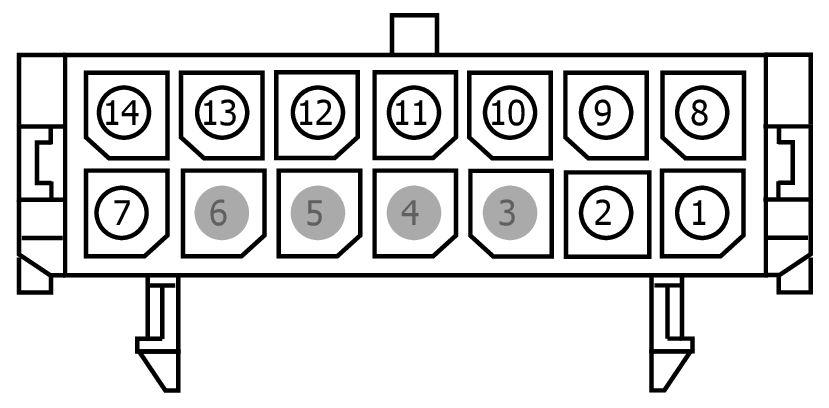

Connector End View (C2409A) - TELEMATICS MODULE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2409A |
TELEMATICS MODULE |
TBJ2009-FS |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
HS1CANP (WH-BU) |
20 |
HS1CAN+ |
version 1 |
N/A |
| 1 |
HSC1 (WH) |
20 |
HS1CAN- |
version 2 |
N/A |
| 2 |
HS1CANM (WH) |
20 |
HS1CAN- |
version 1 |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* (WH-RD) |
20 |
ADC INPUT |
version 1 |
N/A |
| 8 |
VB1 (RD) |
20 |
VBATT |
version 1 |
N/A |
| 8 |
HSC1 (WH-BU) |
20 |
HS1CAN+ |
version 2 |
N/A |
| 9 |
GND (BK) |
20 |
POWER GND |
version 1 |
N/A |
| 10 |
* (BN) |
20 |
OUTPUT 1 |
version 1 |
N/A |
| 11 |
* (BU) |
20 |
INPUT 2 |
version 1 |
N/A |
| 12 |
* (WH) |
20 |
INPUT 1 |
version 1 |
N/A |
| 13 |
* (WH-BU) |
20 |
BUS |
version 1 |
N/A |
| 13 |
GND1 (BK) |
20 |
POWER GND |
version 2 |
N/A |
| 14 |
* (YE) |
20 |
OUTPUT 2 |
version 1 |
N/A |
| 14 |
VB1 (RD) |
20 |
VBATT |
version 2 |
N/A |
