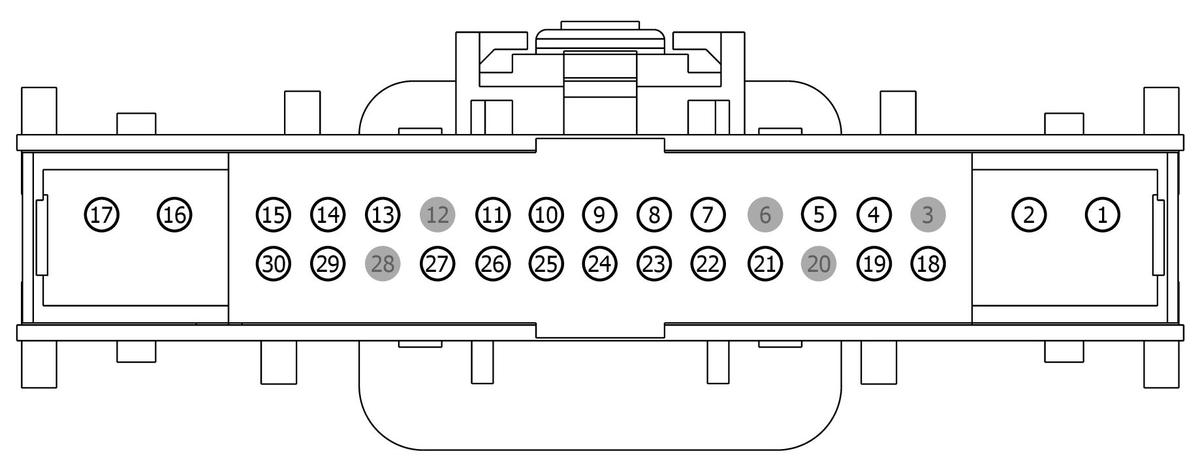

Connector End View (C2402B) - FRONT CONTROLS INTERFACE MODULE (FCIM)
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2402B |
FRONT CONTROLS INTERFACE MODULE (FCIM) |
BK |
14401 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 9U5T-14474-DB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBB28 (GN-RD) |
22 |
FUSE - 28 OR CIRCUIT BREAKER |
7C3T-14474-JA |
| 2 |
SBB28 (GN-RD) |
22 |
FUSE - 28 OR CIRCUIT BREAKER |
7C3T-14474-JA |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
VH409 (WH) |
20 |
SENSOR - DISCHARGE TEMP. # LEFT (LEFT FRONT PANEL) |
9U5T-14474-DB |
| 5 |
VH410 (GY-BU) |
22 |
SENSOR - DISCHARGE TEMP. # LEFT 2ND (LEFT FRONT FLOOR) |
9U5T-14474-DB |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
CH310 (GN) |
22 |
CTRL MOD. - RELAY PTC BANK 1 |
9U5T-14474-DB |
| 8 |
CH311 (VT-GN) |
22 |
CTRL MOD. - RELAY PTC BANK 2 |
9U5T-14474-DB |
| 9 |
CH312 (YE-OG) |
22 |
CTRL MOD. - RELAY PTC BANK 3 |
9U5T-14474-DB |
| 10 |
VH411 (VT-GN) |
20 |
SENSOR - DISCHARGE TEMP. # RIGHT (RIGHT FRONT PANEL) |
9U5T-14474-DB |
| 11 |
VH412 (YE-GY) |
22 |
SENSOR - DISCHARGE TEMP. # RIGHT 2ND (RIGHT FRONT FLOOR) |
9U5T-14474-DB |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
CH212 (BU) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 1 / CLOSE (IF PLUS) |
9U5T-14474-DB |
| 14 |
CH213 (BN) |
22 |
CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 2 / OPEN (IF PLUS) |
9U5T-14474-DB |
| 15 |
RHS10 (BU-OG) |
22 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP. |
9U5T-14474-DB |
| 16 |
CHS02 (YE-BU) |
22 |
CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER + |
7C3T-14474-JA |
| 17 |
CHS07 (GY-BU) |
22 |
CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER + |
7C3T-14474-JA |
| 18 |
VH441 (WH-BN) |
22 |
SENSOR - DOOR POSITION TEMP. RIGHT |
9U5T-14474-DB |
| 19 |
VH413 (WH-BU) |
22 |
SENSOR - HUMIDITY |
9U5T-14474-DB |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
VH416 (VT-GY) |
22 |
SENSOR - SUN LOAD # LEFT |
9U5T-14474-DB |
| 22 |
VH417 (YE-OG) |
22 |
SENSOR - SUN LOAD # RIGHT |
9U5T-14474-DB |
| 23 |
CH253 (WH) |
22 |
CTRL MOD. - CLIMATE # START/STOP SWITCH DISABLE |
9U5T-14474-DB |
| 24 |
CE469 (BN) |
22 |
CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR |
9U5T-14474-DB |
| 25 |
CPD01 (GN-BN) |
22 |
SWITCH - SNOW PLOW |
9U5T-14474-DB |
| 26 |
CPD02 (GY-BU) |
22 |
CTRL MOD. - SNOW PLOW INDICATOR |
9U5T-14474-DB |
| 27 |
VHA31 (GN-BN) |
22 |
SENSOR - REAR TEMP |
9U5T-14474-DB |
| 28 |
* |
* |
Not Used |
N/A |
| 29 |
VH414 (GN-BU) |
22 |
SENSOR - INCAR TEMP. |
9U5T-14474-DB |
| 30 |
RHS05 (YE-VT) |
22 |
CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP. |
9U5T-14474-DB |
