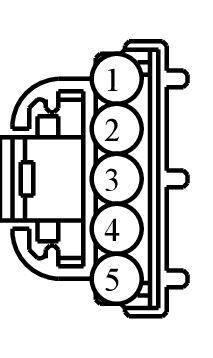

Connector End View (C2395) - HEAD UP DISPLAY (HUD) MODULE

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2395	HEAD UP DISPLAY (HUD) MODULE	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
*9U5T-14474-MA	Not Available
3F2T-14474-SA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	3F2T-14474-SA
2	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	*9U5T-14474-MA
3	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	*9U5T-14474-MA
4	CBP21 (BU-GY)	22	FUSE - 21 OR CIRCUIT BREAKER	3F2T-14474-SA
5	SBP17 (RD)	22	FUSE - 17 OR CIRCUIT BREAKER	3F2T-14474-SA

Available Pigtail Kits

Pigtail Kit Part Number WPT-983

Courtesy of FORD MOTOR COMPANY

Service Part Number:

6U2Z-14S411-SB

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Module - Heads Up Display
Switch - Overdrive Cancel
Switch - Power Window - LH - Rear
Switch - Power Window - Passenger (Front)
