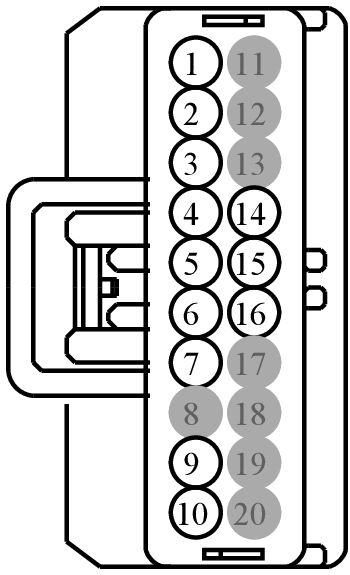

Connector End View (C2371A) - TRANSFER CASE CONTROL MODULE (TCCM)

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2371A	TRANSFER CASE CONTROL MODULE (TCCM)	BN	12A581	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-MA\|*9U5T-14474-MA	Not Available
3F2T-14474-RA	DU2Z-14474-BA	0.64
3F2T-14474-SA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CCF14 (GN-OG)	22	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 1 (4WDP)	3F2T-14474-SA
2	CCF15 (BN-YE)	22	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 2 (4WDP)	3F2T-14474-SA
3	CCF16 (VT-GN)	22	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 3 (4WDP)	3F2T-14474-SA
4	CCF17 (WH-OG)	22	SWITCH - FOUR WHEEL DRIVE MOTOR # POSITION 4 (4WDP)	3F2T-14474-SA
5	RCF09 (BN-WH)	22	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE MOTOR POSITION RETURN (4WDPRTN)	3F2T-14474-SA
6	CCF05 (BN-BU)	20	CTRL MOD. - POWERTRAIN # FOUR WHEEL DRIVE INTEGRATED WHEEL ENDS (4WDIWE)	3F2T-14474-RA
7	CBB13 (GY-BN)	22	FUSE - 13 OR CIRCUIT BREAKER	3F2T-14474-SA
8	*	*	Not Used	N/A
9	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	9U5T-14474-MA\|*9U5T-14474-MA
10	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	9U5T-14474-MA\|*9U5T-14474-MA
11	*	*	Not Used	N/A
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	RCF13 (WH-BN)	22	SWITCH - FOUR WHEEL DRIVE MODE COMMAND (4WDMCS) -+	3F2T-14474-SA
15	CCF32 (WH-GN)	22	SWITCH - LOCKER MODE	3F2T-14474-SA
16	CCF13 (WH-BU)	22	SWITCH - FOUR WHEEL DRIVE MODE COMMAND (4WDMCS) +	3F2T-14474-SA
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1040

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-AHA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Module - Transfer Case Shift Control
