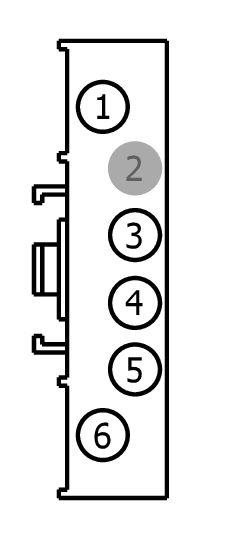

Connector End View (C2293A) - DIRECT CURRENT/ALTERNATING CURRENT (DC/AC) INVERTER
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2293A |
DIRECT CURRENT/ALTERNATING CURRENT (DC/AC) INVERTER |
BK |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| 9U5T-14474-DB |
DU2Z-14474-AA |
0.64 |
| XW4T-14474-TA |
JU2Z-14474-AB |
6.3 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBF05 (GY-RD) |
10 |
FUSE - 5 |
XW4T-14474-TA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
CBP23 (BN-YE) |
22 |
FUSE - 23 OR CIRCUIT BREAKER |
9U5T-14474-DB |
| 4 |
VMP24 (WH) |
22 |
CTRL MOD. - REAR PARK ASSIST CAMERA LIN BUS |
9U5T-14474-DB |
| 5 |
LYA18 (GN-WH) |
22 |
CTRL MOD. - DC/AC INVERTER 2 # LED INDICATOR + |
9U5T-14474-DB |
| 6 |
GD348 (BK-YE) |
10 |
GROUND - PILLAR C OR QUARTER PANEL RIGHT |
XW4T-14474-TA |
