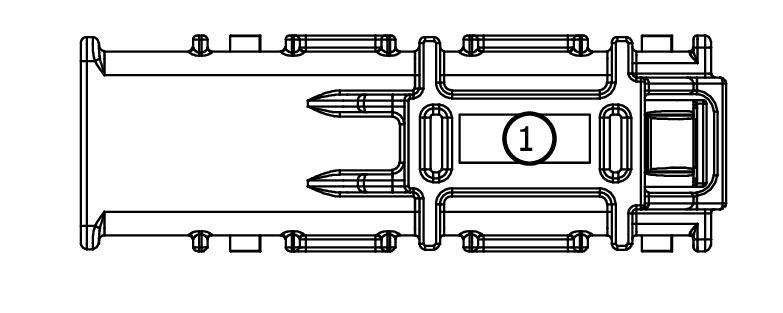

Connector End View (C2280H) - BODY CONTROL MODULE (BCM)
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2280H |
BODY CONTROL MODULE (BCM) |
BK |
12A581 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| *BC3T-14474-CB |
Not Available |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
SBB04 (GN-RD) |
10 |
FUSE - 4 OR CIRCUIT BREAKER |
*BC3T-14474-CB |
