Connector End View (C2280F) - BODY CONTROL MODULE (BCM)

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C2280F BODY CONTROL MODULE (BCM) BK 12A581 part# N/A Not Available

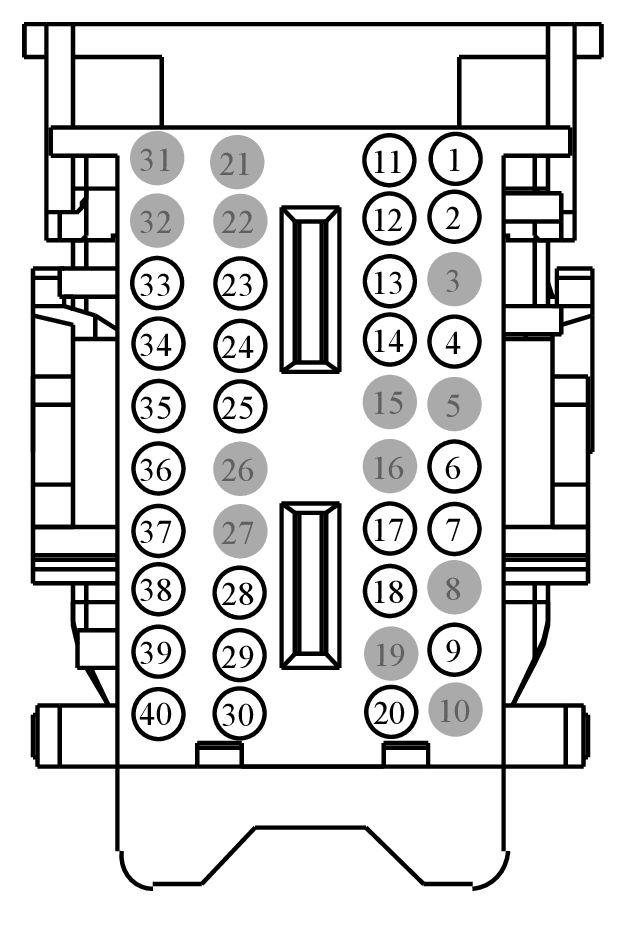

GFDWR82881Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14474-DB|FU5T-14474-LB Not Available
9U5T-14474-DB DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 VMP21 (WH-BN) 22 SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE 9U5T-14474-DB|FU5T-14474-LB
2 CLS18 (GY-BN) 22 CTRL MOD. - STOP/TURN LEFT (INBOARD) 9U5T-14474-DB|FU5T-14474-LB
3 * * Not Used N/A
4 VDN03 (GY-VT) 20 CTRL MOD. - LIN BUS # BCM 3 9U5T-14474-DB
5 * * Not Used N/A
6 CLS56 (YE-GN) 22 LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT 9U5T-14474-DB|FU5T-14474-LB
7 LMP06 (VT-GY) 22 CTRL MOD. - PARKING AID # SENSORS FRONT + 9U5T-14474-DB|FU5T-14474-LB
8 * * Not Used N/A
9 CDC43 (YE-BU) 22 RELAY - ELECTRICAL STEERING COLUMN LOCK 9U5T-14474-DB
10 * * Not Used N/A
11 VMP20 (GY-OG) 22 SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE 9U5T-14474-DB|FU5T-14474-LB
12 CAT17 (BN) 22 RELAY - TRAILER TOW PARK LAMPS (COLOR TO SAE 1239) 9U5T-14474-DB|FU5T-14474-LB
13 CLS19 (VT-OG) 22 CTRL MOD. - STOP/TURN RIGHT (INBOARD) 9U5T-14474-DB|FU5T-14474-LB
14 CPL25 (BU-OG) 20 SWITCH - HOOD # AJAR 9U5T-14474-DB
15 * * Not Used N/A
16 * * Not Used N/A
17 CLS58 (BU-WH) 22 LAMP - TURN FRONT RIGHT # SIGNAL OUT 9U5T-14474-DB|FU5T-14474-LB
18 CE436 (VT-OG) 22 CTRL MOD. -WAKE UP PCM 9U5T-14474-DB|FU5T-14474-LB
19 * * Not Used N/A
20 CRH04 (VT-GN) 22 CTRL MOD. - RELAY HORN 9U5T-14474-DB|FU5T-14474-LB
21 * * Not Used N/A
22 * * Not Used N/A
23 CDC71 (YE-GY) 22 CTRL MOD. - POWER OUTLET ENABLE OR SET 9U5T-14474-DB|FU5T-14474-LB
24 CDC64 (WH-BU) 22 RELAY - RUN ACCESSORY 9U5T-14474-DB|FU5T-14474-LB
25 CDC55 (GY) 22 RELAY - RUN START 9U5T-14474-DB|FU5T-14474-LB
26 * * Not Used N/A
27 * * Not Used N/A
28 CMC19 (GY-VT) 20 SWITCH - LOW LEVEL BRAKE FLUID 9U5T-14474-DB
29 CE261 (GY-OG) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP ON (FUEL_PUMP_ON) (IES) 9U5T-14474-DB|FU5T-14474-LB
30 CLS06 (GN-OG) 20 CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT 9U5T-14474-DB|FU5T-14474-LB
30 CLS06 (GN-OG) 22 CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT 9U5T-14474-DB|FU5T-14474-LB
31 * * Not Used N/A
32 * * Not Used N/A
33 CDC72 (BN-WH) 22 CTRL MOD. - POWER OUTLET DISABLE OR RESET 9U5T-14474-DB|FU5T-14474-LB
34 CDC65 (GN-BU) 22 RELAY - LOAD MANAGEMENT (LOAD SHED) 9U5T-14474-DB
35 RMP06 (YE-OG) 22 CTRL MOD. - PARKING AID # SENSORS FRONT - 9U5T-14474-DB|FU5T-14474-LB
36 CLS64 (GN-VT) 22 CTRL MOD. - STOP/TURN RIGHT REDUNDANT 9U5T-14474-DB|FU5T-14474-LB
36 CLF62 (VT-WH) 22 CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT 9U5T-14474-DB|FU5T-14474-LB
37 CLS07 (BN-YE) 20 CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT 9U5T-14474-DB|FU5T-14474-LB
37 CLS07 (BN-YE) 22 CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT 9U5T-14474-DB|FU5T-14474-LB
38 CLS25 (YE-VT) 22 CTRL MOD. - TURN LAMP RIGHT FRONT 9U5T-14474-DB|FU5T-14474-LB
39 CLS21 (BU-GN) 22 CTRL MOD. - TURN LAMP LEFT FRONT 9U5T-14474-DB|FU5T-14474-LB
40 CLS60 (BU-GN) 22 CTRL MOD. - STOP/TURN LEFT REDUNDANT 9U5T-14474-DB|FU5T-14474-LB
40 CLF61 (GY-BU) 22 CTRL MOD. - DAYTIME RUNNING LIGHT LEFT 9U5T-14474-DB|FU5T-14474-LB
