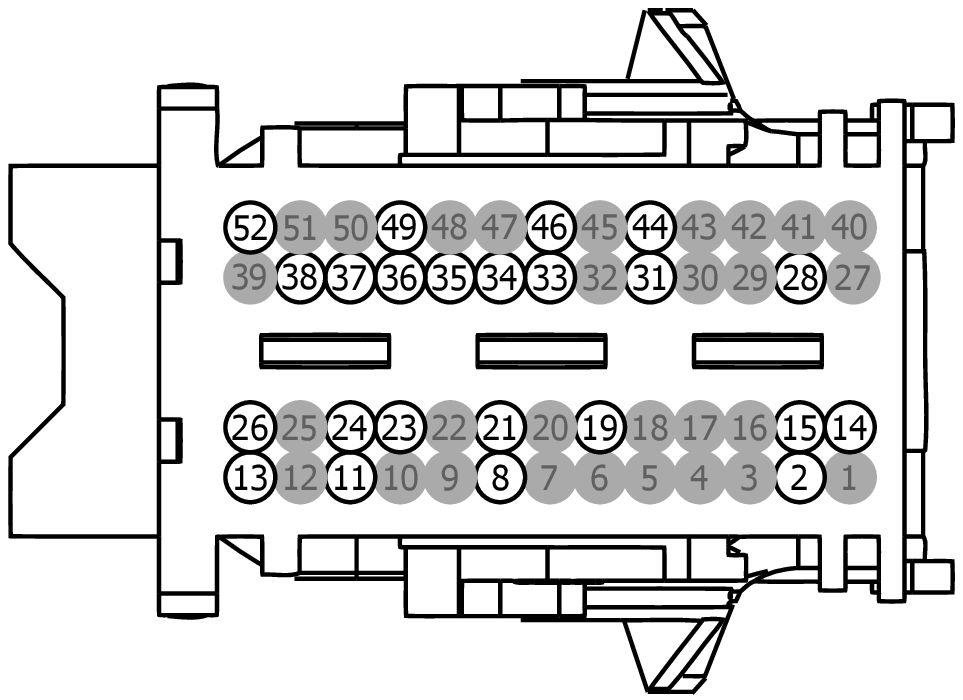

Connector End View (C2280E) - BODY CONTROL MODULE (BCM)
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: |
Description |
Color |
Harness |
Base Part # |
Service Pigtail |
| C2280E |
BODY CONTROL MODULE (BCM) |
BU/GY |
14A005 |
part# N/A |
Not Available |
 Courtesy of FORD MOTOR COMPANY
|
| Terminal Part Number |
Service Part Number |
Size |
|
| *9U5T-14474-EB |
Not Available |
| 9U5T-14474-DB|9U5T-14474-EB |
Not Available |
| 9U5T-14474-DB |
DU2Z-14474-AA |
0.64 |
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
Terminal Part Number |
| 1 |
* |
* |
Not Used |
N/A |
| 2 |
CPK30 (VT-GN) |
22 |
SWITCH - KEYLESS KEYPAD LINE B |
9U5T-14474-DB |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
* |
* |
Not Used |
N/A |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
CLN13 (WH-BU) |
22 |
SWITCH - TRUNK/CARGO LAMP |
9U5T-14474-DB |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
CLF76 (GY-OG) |
22 |
CTRL MOD. - SPOTLIGHT ENABLE |
9U5T-14474-DB |
| 12 |
* |
* |
Not Used |
N/A |
| 13 |
CLS52 (BN) |
22 |
CTRL MOD. - STOP/TURN RIGHT MIDDLE |
9U5T-14474-DB |
| 13 |
CLS52 (BN) |
20 |
CTRL MOD. - STOP/TURN RIGHT MIDDLE |
9U5T-14474-DB |
| 14 |
CPL60 (BN-YE) |
22 |
SWITCH - LIFTGATE GLASS RELEASE |
9U5T-14474-DB |
| 15 |
CPK31 (YE-GN) |
22 |
SWITCH - KEYLESS KEYPAD LINE C |
9U5T-14474-DB |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
* |
* |
Not Used |
N/A |
| 18 |
* |
* |
Not Used |
N/A |
| 19 |
CPL39 (YE) |
22 |
SWITCH - LATCH REAR PASSENGER SIDE OR RIGHT REAR # AJAR (INCL.SLIDING DOOR) |
9U5T-14474-DB |
| 20 |
* |
* |
Not Used |
N/A |
| 21 |
CPL31 (WH) |
22 |
SWITCH - LATCH PASSENGER OR RIGHT FRONT # AJAR |
9U5T-14474-DB |
| 22 |
* |
* |
Not Used |
N/A |
| 23 |
CLS19 (VT-OG) |
22 |
CTRL MOD. - STOP/TURN RIGHT (INBOARD) |
9U5T-14474-DB |
| 24 |
CLS18 (GY-BN) |
22 |
CTRL MOD. - STOP/TURN LEFT (INBOARD) |
9U5T-14474-DB |
| 25 |
* |
* |
Not Used |
N/A |
| 26 |
CLS23 (GY) |
22 |
CTRL MOD. - TURN LAMP LEFT REAR |
9U5T-14474-DB|9U5T-14474-EB |
| 26 |
CLS23 (GY-OG) |
18 |
CTRL MOD. - TURN LAMP LEFT REAR |
9U5T-14474-DB|9U5T-14474-EB |
| 27 |
* |
* |
Not Used |
N/A |
| 28 |
CPK29 (GY-BU) |
22 |
SWITCH - KEYLESS KEYPAD LINE A |
9U5T-14474-DB |
| 29 |
* |
* |
Not Used |
N/A |
| 30 |
* |
* |
Not Used |
N/A |
| 31 |
CLS55 (GN-BU) |
22 |
LAMP - TURN REAR LEFT # SIGNAL OUT |
9U5T-14474-DB |
| 32 |
* |
* |
Not Used |
N/A |
| 33 |
CPL26 (GN-VT) |
22 |
SWITCH - LATCH DRIVER OR LEFT FRONT # AJAR |
9U5T-14474-DB |
| 34 |
CPL44 (YE-OG) |
22 |
SWITCH - LIFTGATE/DECKLID/CARGO # AJAR |
9U5T-14474-DB |
| 35 |
CPK28 (WH-GN) |
22 |
CTRL MOD. - SWITCH KEYLESS KEYPAD ILLUMINATION |
9U5T-14474-DB |
| 36 |
VDN03 (GY-VT) |
22 |
CTRL MOD. - LIN BUS # BCM 3 |
9U5T-14474-DB |
| 37 |
VMP24 (WH) |
22 |
CTRL MOD. - REAR PARK ASSIST CAMERA LIN BUS |
9U5T-14474-DB |
| 38 |
VDN13 (BN) |
22 |
CTRL MOD. - LIN BUS # BCM 13 |
9U5T-14474-DB |
| 39 |
* |
* |
Not Used |
N/A |
| 40 |
* |
* |
Not Used |
N/A |
| 41 |
* |
* |
Not Used |
N/A |
| 42 |
* |
* |
Not Used |
N/A |
| 43 |
* |
* |
Not Used |
N/A |
| 44 |
CLS54 (BU-OG) |
22 |
LAMP - TURN REAR RIGHT # SIGNAL OUT |
9U5T-14474-DB |
| 45 |
* |
* |
Not Used |
N/A |
| 46 |
CPL36 (GN) |
22 |
SWITCH - LATCH REAR DRIVER SIDE OR LEFT REAR # AJAR (INCL.SLIDING DOOR) |
9U5T-14474-DB |
| 47 |
* |
* |
Not Used |
N/A |
| 48 |
* |
* |
Not Used |
N/A |
| 49 |
CR167 (YE-VT) |
22 |
CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) |
*9U5T-14474-EB |
| 50 |
* |
* |
Not Used |
N/A |
| 51 |
* |
* |
Not Used |
N/A |
| 52 |
CLS27 (GN) |
22 |
CTRL MOD. - TURN LAMP RIGHT REAR |
9U5T-14474-DB|9U5T-14474-EB |
| 52 |
CLS27 (GN-OG) |
18 |
CTRL MOD. - TURN LAMP RIGHT REAR |
9U5T-14474-DB|9U5T-14474-EB |
