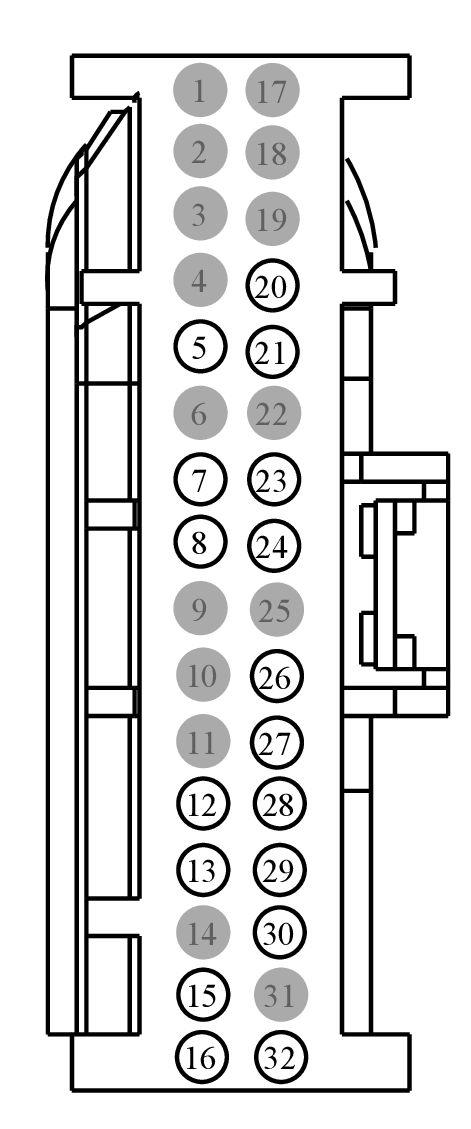

Connector End View (C2280D) - BODY CONTROL MODULE (BCM)
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C2280D | BODY CONTROL MODULE (BCM) | BK | 14A005 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| *9U5T-14474-EB | Not Available | |
| 9U5T-14474-DB | DU2Z-14474-AA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | * | * | Not Used | N/A | ||||
| 2 | * | * | Not Used | N/A | ||||
| 3 | * | * | Not Used | N/A | ||||
| 4 | * | * | Not Used | N/A | ||||
| 5 | VPK40 (WH-OG) | 22 | SENSOR - KEYLESS VEHICLE HANDLE PASSENGER POWER/DATA | 9U5T-14474-DB | ||||
| 6 | * | * | Not Used | N/A | ||||
| 7 | VMP17 (YE-OG) | 22 | SENSOR - PARKING AID # REAR # (RIGHT OUTER) | 9U5T-14474-DB | ||||
| 8 | VMP16 (YE-GY) | 22 | SENSOR - PARKING AID # REAR # (RIGHT INNER) | 9U5T-14474-DB | ||||
| 9 | * | * | Not Used | N/A | ||||
| 10 | * | * | Not Used | N/A | ||||
| 11 | * | * | Not Used | N/A | ||||
| 12 | VPK02 (VT-WH) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER + | 9U5T-14474-DB | ||||
| 13 | VPK01 (BN-YE) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER + | 9U5T-14474-DB | ||||
| 14 | * | * | Not Used | N/A | ||||
| 15 | RPK06 (BU-WH) | 20 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) - | 9U5T-14474-DB | ||||
| 16 | VPK06 (GY-VT) | 20 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA INTERIOR 2 (CENTER) + | 9U5T-14474-DB | ||||
| 17 | * | * | Not Used | N/A | ||||
| 18 | * | * | Not Used | N/A | ||||
| 19 | * | * | Not Used | N/A | ||||
| 20 | RPK39 (VT-OG) | 22 | SENSOR - KEYLESS VEHICLE HANDLE | *9U5T-14474-EB | ||||
| 21 | VPK39 (GN-VT) | 22 | SENSOR - KEYLESS VEHICLE HANDLE DRIVER POWER/DATA | 9U5T-14474-DB | ||||
| 22 | * | * | Not Used | N/A | ||||
| 23 | VMP15 (YE-GN) | 22 | SENSOR - PARKING AID # REAR # (LEFT OUTER) | 9U5T-14474-DB | ||||
| 24 | VMP14 (WH-OG) | 22 | SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE) | 9U5T-14474-DB | ||||
| 25 | * | * | Not Used | N/A | ||||
| 26 | LMP07 (BU-WH) | 22 | CTRL MOD. - PARKING AID # SENSORS REAR + | 9U5T-14474-DB | ||||
| 27 | RMP07 (GN-WH) | 22 | CTRL MOD. - PARKING AID # SENSORS REAR - | 9U5T-14474-DB | ||||
| 28 | RPK01 (WH-GN) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE DRIVER - | 9U5T-14474-DB | ||||
| 29 | RPK02 (GY-YE) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER - | 9U5T-14474-DB | ||||
| 30 | VPK08 (WH-OG) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR + | 9U5T-14474-DB | ||||
| 31 | * | * | Not Used | N/A | ||||
| 32 | RPK08 (YE-GN) | 22 | CTRL MOD. - KEYLESS VEHICLE # ANTENNA TRUNK INTERIOR - | 9U5T-14474-DB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1512
Service Part Number:
JU2Z-14S411-DA
Gauge:
20
Pin material:
Silver
Cavities:
32
Vehicle Uses:
- Module - Body Control
