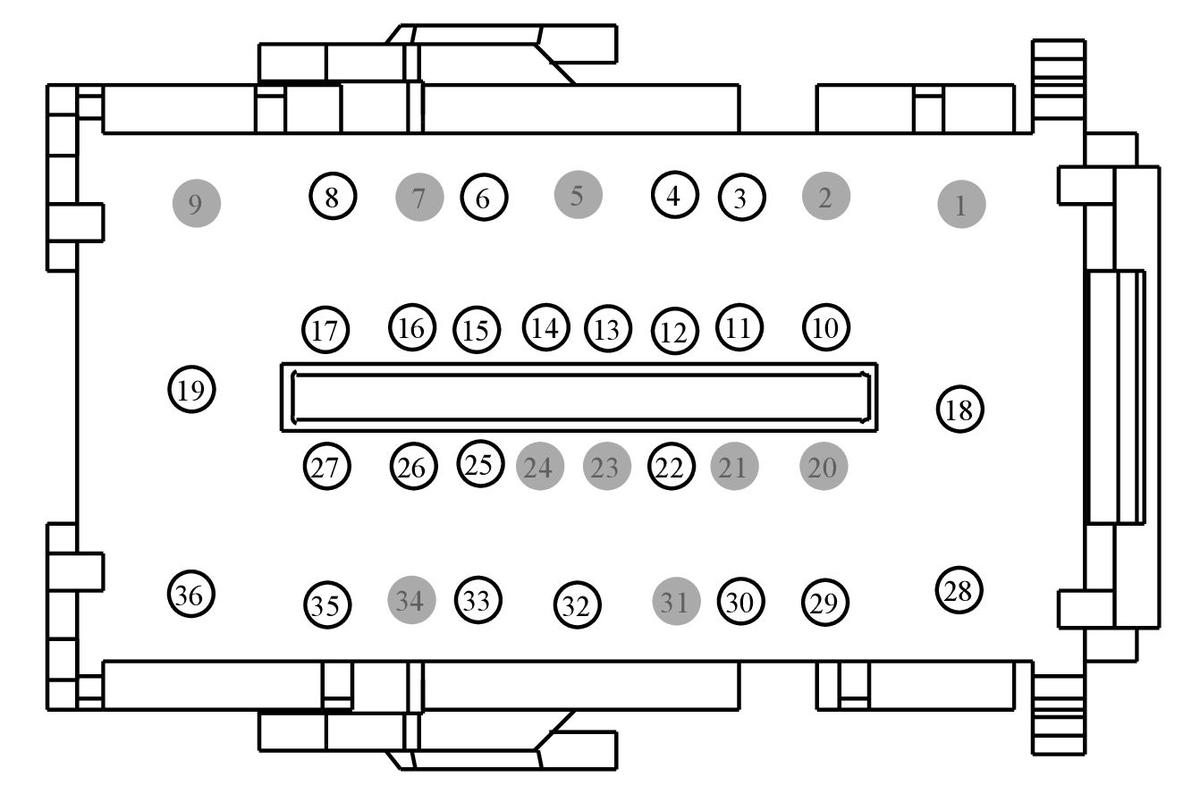

Connector End View (C2280C) - BODY CONTROL MODULE (BCM)

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280C	BODY CONTROL MODULE (BCM)	BK	14A005	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
DU5T-14474-JBB	Not Available
BU5T-14474-UA\|7C3T-14474-DA	Not Available
7C3T-14474-DA\|7C3T-14474-EA	Not Available
DU5T-14474-HBB	Not Available
7C3T-14474-DA\|BU5T-14474-UA	Not Available
DU5T-14474-LBB\|DU5T-14474-JBB	Not Available
BU5T-14474-UA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	SBP09 (RD)	22	FUSE - 9 OR CIRCUIT BREAKER	BU5T-14474-UA
4	CBX07 (GN-RD)	22	POWER - CTRL MOD. AMBIENT LIGHTING	BU5T-14474-UA
5	*	*	Not Used	N/A
6	GD239 (BK-YE)	20	GROUND - COWL SIDE/PILLAR A RIGHT # 2ND POINT	BU5T-14474-UA
7	*	*	Not Used	N/A
8	CBP36 (BU-BN)	18	FUSE - 36 OR CIRCUIT BREAKER	DU5T-14474-JBB
8	CBP36 (BU-BN)	20	FUSE - 36 OR CIRCUIT BREAKER	DU5T-14474-JBB
8	CBP36 (BU-BN)	22	FUSE - 36 OR CIRCUIT BREAKER	DU5T-14474-JBB
9	*	*	Not Used	N/A
10	GD238 (BK-WH)	16	GROUND - COWL SIDE/PILLAR A RIGHT	DU5T-14474-JBB
11	CLS10 (GN-BN)	18	CTRL MOD. - REVERSE LEFT OR COMMON	7C3T-14474-DA\|7C3T-14474-EA
11	CLS10 (GN-BN)	22	CTRL MOD. - REVERSE LEFT OR COMMON	7C3T-14474-DA\|7C3T-14474-EA
12	CLS05 (BU-GY)	22	CTRL MOD. - PARK	BU5T-14474-UA\|7C3T-14474-DA
12	CLS05 (BU)	16	CTRL MOD. - PARK	BU5T-14474-UA\|7C3T-14474-DA
12	CLS05 (BU-GY)	20	CTRL MOD. - PARK	BU5T-14474-UA\|7C3T-14474-DA
13	VLN33 (GY-VT)	22	CTRL MOD. - INTERIOR/COURTESY LAMP DIMMING (THEATRE)	BU5T-14474-UA
14	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)	7C3T-14474-DA
15	SBP11 (BU-RD)	22	FUSE - 11 OR CIRCUIT BREAKER	BU5T-14474-UA
16	SBP10 (YE-RD)	22	FUSE - 10 OR CIRCUIT BREAKER	BU5T-14474-UA
17	SBP14 (BN-RD)	22	FUSE - 14 OR CIRCUIT BREAKER	DU5T-14474-HBB
18	SBP26 (YE-RD)	10	FUSE - 26 OR CIRCUIT BREAKER	DU5T-14474-UBB
19	SBP27 (BU-RD)	16	FUSE - 27 OR CIRCUIT BREAKER	DU5T-14474-PBB
20	*	*	Not Used	N/A
21	*	*	Not Used	N/A
22	SBP32 (VT-RD)	22	FUSE - 32 OR CIRCUIT BREAKER	BU5T-14474-UA
23	*	*	Not Used	N/A
24	*	*	Not Used	N/A
25	CLS45 (BN-GN)	22	CTRL MOD. - FOG LAMP REAR (LEFT) +	BU5T-14474-UA
26	CLN25 (WH-GN)	22	RELAY - PUDDLE LAMPS (KERB ILLUM.)	7C3T-14474-DA\|BU5T-14474-UA
27	CPL51 (BU-GN)	18	CTRL MOD. - DOOR LOCK # DRIVER UNLOCK	DU5T-14474-JBB
28	SBP25 (RD)	10	FUSE - 25 OR CIRCUIT BREAKER	DU5T-14474-UBB
29	SBP02 (YE-RD)	20	FUSE - 2 OR CIRCUIT BREAKER	DU5T-14474-JBB
30	CBP23 (BN-YE)	22	FUSE - 23 OR CIRCUIT BREAKER	BU5T-14474-UA
31	*	*	Not Used	N/A
32	CPL13 (BN-GN)	18	CTRL MOD. - DOOR LOCK # ALL UNLOCK	DU5T-14474-JBB
32	CPL13 (BN-GN)	16	CTRL MOD. - DOOR LOCK # ALL UNLOCK	DU5T-14474-JBB
33	CPL10 (GN-WH)	16	CTRL MOD. - DOOR LOCK # LIFTGATE/DECKLID RELEASE	7C3T-14474-DA
34	*	*	Not Used	N/A
35	CPL11 (GY-BN)	20	CTRL MOD. - DOOR LOCK # ALL LOCK	DU5T-14474-LBB\|DU5T-14474-JBB
35	CPL11 (GY-BN)	18	CTRL MOD. - DOOR LOCK # ALL LOCK	DU5T-14474-LBB\|DU5T-14474-JBB
35	CPL11 (GY-BN)	16	CTRL MOD. - DOOR LOCK # ALL LOCK	DU5T-14474-LBB\|DU5T-14474-JBB
36	CBP38 (GY-BU)	14	FUSE - 38 OR CIRCUIT BREAKER	DU5T-14474-UBB
