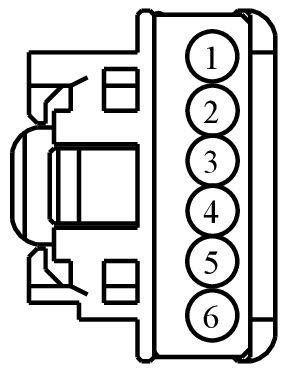

Connector End View (C2247) - IN-VEHICLE TEMPERATURE AND HUMIDITY SENSOR
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C2247 | IN-VEHICLE TEMPERATURE AND HUMIDITY SENSOR | BK | 14401 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-LA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VHA31 (GN-BN) | 22 | SENSOR - REAR TEMP | 9U5T-14474-LA | ||||
| 2 | VH414 (GN-BU) | 22 | SENSOR - INCAR TEMP. | 9U5T-14474-LA | ||||
| 3 | LH111 (BN-WH) | 22 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS | 9U5T-14474-LA | ||||
| 4 | VH413 (WH-BU) | 22 | SENSOR - HUMIDITY | 9U5T-14474-LA | ||||
| 5 | RH111 (GY-BU) | 22 | CTRL MOD. - CLIMATE # SIGNAL RETURN | 9U5T-14474-LA | ||||
| 6 | CBP21 (BU-GY) | 22 | FUSE - 21 OR CIRCUIT BREAKER | 9U5T-14474-LA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1242
Service Part Number:
3U2Z-14S411-MJB
Gauge:
18
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Indicator - Passenger Airbag Deactivation (PADI)
- Sensor - EATC In Car Temperature
- Switch - Multifunction
