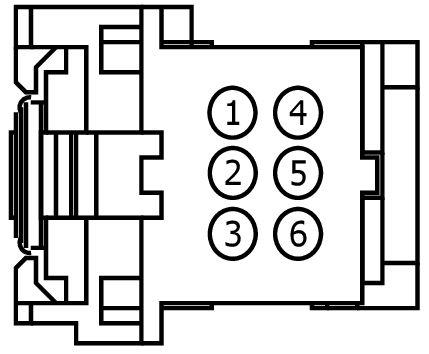

Connector End View (C2195) - IGNITION SWITCH
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C2195 | IGNITION SWITCH | BK | 14C210 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 8U5T-14474-BB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CDC35 (BU-WH) | 22 | SWITCH - IGNITION # START | 8U5T-14474-BB | ||||
| 2 | CPK36 (VT-BN) | 22 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP RUN LED | 8U5T-14474-BB | ||||
| 3 | GD216 (BK) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | 8U5T-14474-BB | ||||
| 4 | SBP18 (RD) | 22 | FUSE - 18 OR CIRCUIT BREAKER | 8U5T-14474-BB | ||||
| 5 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | 8U5T-14474-BB | ||||
| 6 | CPK35 (YE-GN) | 22 | CTRL MOD. - KEYLESS VEHICLE # SWITCH START/STOP 2 + | 8U5T-14474-BB | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1518
Service Part Number:
JU2Z-14S411-NA
Gauge:
20
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Switch - Deck Lid / Hatch Release
- Switch - Lift Gate Shutface
- Switch - Power Liftgate
- Switch - Shift By Wire Override
