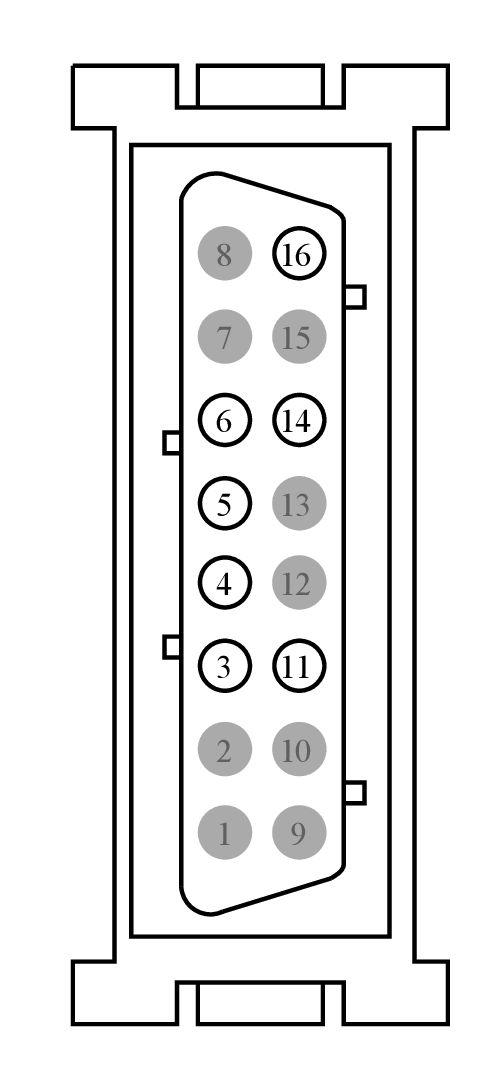

Connector End View (C2122) - REMOTE DATA LINK CONNECTOR (DLC)

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2122	REMOTE DATA LINK CONNECTOR (DLC)	WH	14G602	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1X4T-14474-BA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used	N/A
2	*	*	Not Used	N/A
3	VDB25 (GN-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH	1X4T-14474-BA
4	GD215 (BK-GY)	22	GROUND	1X4T-14474-BA
5	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	1X4T-14474-BA
6	VDB04 (BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH	1X4T-14474-BA
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	VDB26 (GY-BU)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW	1X4T-14474-BA
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	VDB05 (WH)	22	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW	1X4T-14474-BA
15	*	*	Not Used	N/A
16	SBP15 (WH-RD)	22	FUSE - 15 OR CIRCUIT BREAKER	1X4T-14474-BA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1380

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-ASA

Gauge:

Pin material:

Tin

Cavities:

Vehicle Uses:

Test Connector - Diagnostic
