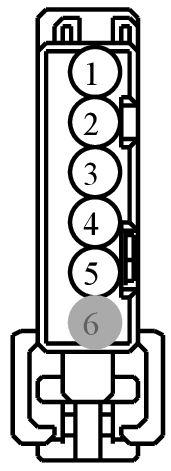

Connector End View (C2039) - INSTRUMENT PANEL SWITCH PACK

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2039	INSTRUMENT PANEL SWITCH PACK	BK	14401	part# N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
3F2T-14474-SA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CPD02 (GY-BU)	22	CTRL MOD. - SNOW PLOW INDICATOR	3F2T-14474-SA
1	CE469 (BN)	22	CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR	3F2T-14474-SA
2	CPD01 (GN-BN)	22	SWITCH - SNOW PLOW	3F2T-14474-SA
2	CH253 (WH)	22	CTRL MOD. - CLIMATE # START/STOP SWITCH DISABLE	3F2T-14474-SA
2	CRB05 (GN-OG)	22	SWITCH - LANE DEPARTURE WARNING (LDW)	3F2T-14474-SA
2	CMP40 (WH-GN)	22	SWITCH - FRONT 360 CAMERA ENABLE	3F2T-14474-SA
3	GD216 (BK-VT)	22	GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT	3F2T-14474-SA
4	CLS32 (BN-YE)	22	SWITCH - HAZARD	3F2T-14474-SA
5	VLN04 (VT-GY)	22	CTRL MOD. - IP/SWITCH ILLUMINATION	3F2T-14474-SA
6	*	*	Not Used	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1590

Courtesy of FORD MOTOR COMPANY

Service Part Number:

6U2Z-14S411-LC

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses:

Antenna - GPS
Module - Global Positioning
Module - Remote Functions Receiver
Motor - Recline (Third Row)
Switch - Dimmer
Switch - Hazard Warning
Switch - Moon Roof/Sun Roof
Switch - Multifunction
Switch - Multifunction (Dimmer)
Switch - Multifunction (Wiper)
Switch - Reverse Park Aid
Switch - Seat (driver)
Switch - Seat Drivers Side (2nd Row)
Switch - Spotlight
Switch - Sunshade

Pigtail Kit Part Number WPT-958

Courtesy of FORD MOTOR COMPANY

Service Part Number:

6U2Z-14S411-LB

Gauge:

18 20

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:

Antenna - GPS
Module - Global Positioning
