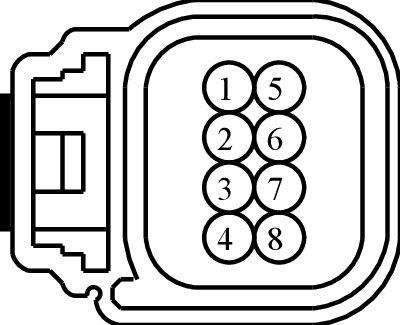

Connector End View (C2015) - PARKING BRAKE SWITCH
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C2015 | PARKING BRAKE SWITCH | BK | 14401 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VLN04 (VT-GY) | 22 | CTRL MOD. - IP/SWITCH ILLUMINATION | 3F2T-14474-SA | ||||
| 2 | GD216 (BK-VT) | 22 | GROUND - INSTRUMENT PANEL STRUCTURE # 3RD POINT | 3F2T-14474-SA | ||||
| 3 | CCB20 (BU-WH) | 22 | CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 1 | 3F2T-14474-SA | ||||
| 4 | CCB23 (VT-GN) | 22 | CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 4 | 3F2T-14474-SA | ||||
| 5 | CCB25 (BN) | 22 | CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 6 | 3F2T-14474-SA | ||||
| 6 | CCB24 (WH-OG) | 22 | CTRL MOD. - ELEC.PARK BRAKE # SWITCH INPUT 5 | 3F2T-14474-SA | ||||
| 7 | CCB22 (WH-BN) | 22 | CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 3 | 3F2T-14474-SA | ||||
| 8 | CCB21 (GN-VT) | 22 | CTRL MOD. - ELEC.PARK BRAKE # SWITCH SUPPLY 2 | 3F2T-14474-SA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1198
Service Part Number:
4U2Z-14S411-LC
Gauge:
18
Pin material:
Silver
Cavities:
8
Vehicle Uses:
- Module - Remote Keyless Entry
- Switch - Keyless Entry
