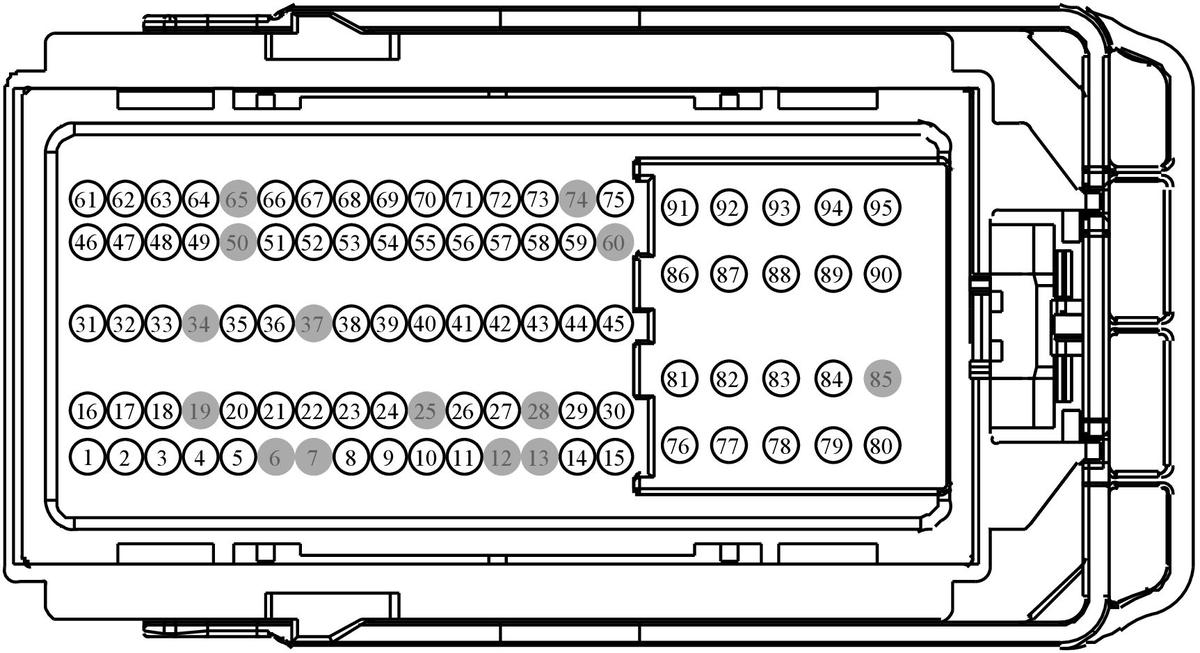

Connector End View (C1915E) - POWERTRAIN CONTROL MODULE (PCM)

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1915E	POWERTRAIN CONTROL MODULE (PCM)	BK	12C508	part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-BB	Not Available
7C3T-14474-EA	DU2Z-14474-DA	1.5

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE818 (BN)	18	SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS)	BU5T-14474-BB
2	LE458 (BU-WH)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2)	BU5T-14474-BB
3	LE111 (VT-GN)	18	CTRL MOD. - POWERTRAIN # POWER SUPPLY SENSORS	BU5T-14474-BB
4	LE134 (GY)	18	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)	BU5T-14474-BB
5	LE423 (GN-VT)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)	BU5T-14474-BB
6	*	*	Not Used	N/A
7	*	*	Not Used	N/A
8	VE802 (BN-BU)	18	SENSOR - KNOCK 2ND BANK 1ST (KS2P) [KSL2+]	BU5T-14474-BB
9	RE324 (BN-GN)	18	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-]	BU5T-14474-BB
10	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	BU5T-14474-BB
11	CE235 (GN-BN)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT.	BU5T-14474-BB
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	RE354 (WH-BU)	18	CTRL MOD. - POWERTRAIN # REDUCTANT PUMP MOTOR (RPMP) -	BU5T-14474-BB
15	VE354 (VT)	18	CTRL MOD. - POWERTRAIN # REDUCTANT PUMP MOTOR (RPMP) +	BU5T-14474-BB
16	CE422 (WH-OG)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2)	BU5T-14474-BB
17	VE804 (GN-BN)	18	SENSOR - INTAKE AIR TEMPERATURE (IAT2)	BU5T-14474-BB
18	VE763 (YE)	18	SENSOR - CRANKCASE VENTILATION MONITOR (CVM)	BU5T-14474-BB
19	*	*	Not Used	N/A
20	RE401 (GN-BU)	18	CTRL MOD. - POWERTRAIN # SCREEN GROUNDS -	BU5T-14474-BB
21	VE727 (BU-BN)	18	SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS)	BU5T-14474-BB
22	VE850 (WH-VT)	18	SENSOR - WASTE GATE CONTROL PRESSURE (WGCP)	BU5T-14474-BB
23	VE836 (VT-GN)	18	SENSOR - WASTEGATE POSITION (WGT_PS)	BU5T-14474-BB
24	VE723 (GN-WH)	18	SENSOR - EXHAUST GAS TEMPERATURE 2 (EGT2) +	BU5T-14474-BB
25	*	*	Not Used	N/A
26	VE707 (GN-VT)	18	SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2) +	BU5T-14474-BB
27	VE711 (YE-VT)	18	SENSOR - CRANKSHAFT POSITION (CKPP) +	BU5T-14474-BB
28	*	*	Not Used	N/A
29	RE405 (GN-WH)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A)	BU5T-14474-BB
30	CE263 (BU-GN)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 2	BU5T-14474-BB
31	CE443 (BN-VT)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 4	BU5T-14474-BB
32	CMC24 (GY)	18	SWITCH - OIL PRESSURE	BU5T-14474-BB
33	VE728 (GN)	18	SENSOR - FUEL RAIL TEMPERATURE (FRT)	BU5T-14474-BB
34	*	*	Not Used	N/A
35	RE134 (BU-OG)	18	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)	BU5T-14474-BB
36	VE712 (BU-GY)	18	SENSOR - CYLINDER HEAD TEMPERATURE (CHT)	BU5T-14474-BB
37	*	*	Not Used	N/A
38	VE761 (YE)	18	SENSOR - FUEL LOW PRESSURE (FLPS)	BU5T-14474-BB
39	CBK01 (BU)	18	FUSE - 50 OR CIRCUIT BREAKER (VPWR 1)	BU5T-14474-BB
40	VE706 (BN-BU)	18	SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) +	BU5T-14474-BB
41	CE303 (WH-VT)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A)	BU5T-14474-BB
42	CE266 (VT-GN)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 5	BU5T-14474-BB
43	CE262 (GN)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 1	BU5T-14474-BB
44	CE236 (GY-VT)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT.	BU5T-14474-BB
45	CE264 (YE-VT)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 3	BU5T-14474-BB
46	CE421 (VT)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT1)	BU5T-14474-BB
47	LE453 (BN-BU)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED	BU5T-14474-BB
48	LE452 (OG)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED	BU5T-14474-BB
49	LE449 (VT-GN)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO	BU5T-14474-BB
50	*	*	Not Used	N/A
51	LE448 (GY-BU)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO	BU5T-14474-BB
52	VE740 (VT-GY)	18	SENSOR - INTAKE AIR TEMPERATURE (IAT)	BU5T-14474-BB
53	RE135 (GN-BN)	18	CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) -	BU5T-14474-BB
54	LE143 (GY)	18	CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 1 +	BU5T-14474-BB
55	CE304 (YE-BU)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B)	BU5T-14474-BB
56	CE307 (WH-BN)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 5 (COP-E)	BU5T-14474-BB
57	CE308 (VT-BN)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 6 (COP-F)	BU5T-14474-BB
58	CE265 (WH)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 4	BU5T-14474-BB
59	CE113 (WH-BN)	18	CTRL MOD. - POWERTRAIN # CANISTER PURGE VALVE (CANP)	BU5T-14474-BB
60	*	*	Not Used	N/A
61	CE442 (YE-GY)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 3	BU5T-14474-BB
62	LE450 (WH)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT	BU5T-14474-BB
63	LE451 (BN-YE)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT	BU5T-14474-BB
64	VE827 (WH-GN)	18	SENSOR - UNIVERSAL HEATED OXYGEN	BU5T-14474-BB
65	*	*	Not Used	N/A
66	VE826 (BN-VT)	18	SENSOR - UNIVERSAL HEATED OXYGEN	BU5T-14474-BB
67	RE323 (WH-BN)	18	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] -	BU5T-14474-BB
68	VE801 (VT-OG)	18	SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+]	BU5T-14474-BB
69	LE144 (YE-VT)	18	CTRL MOD. - POWERTRAIN # CAMSHAFT SENSOR 2 +	BU5T-14474-BB
70	CE305 (BU-OG)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C)	BU5T-14474-BB
71	CE306 (GN-VT)	18	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D)	BU5T-14474-BB
72	CE267 (BU-GY)	18	CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 6	BU5T-14474-BB
73	VE821 (WH-VT)	18	SENSOR - VACUUM RESERVOIR PRESSURE (VRP)	BU5T-14474-BB
74	*	*	Not Used	N/A
75	CE435 (YE-BU)	18	CTRL MOD. - POWERTRAIN # TURBO CONTROL VALVE	BU5T-14474-BB
76	CH307 (GY-BU)	18	CTRL MOD. - POWERTRAIN # HEATED PUMP CONTROL RELAY (HPCR)	7C3T-14474-DA
77	RE466 (GN-BN)	18	CTRL MOD. - POWERTRAIN # SUPERCHARGER BYPASS ACTUATOR MOTOR -	7C3T-14474-DA
78	CE466 (BU-BN)	18	CTRL MOD. - POWERTRAIN # SUPERCHARGER BYPASS ACTUATOR MOTOR +	7C3T-14474-DA
79	CE412 (YE-VT)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+)	7C3T-14474-DA
80	CE426 (BU-GN)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-)	7C3T-14474-DA
81	RE209 (WH-GN)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) -	7C3T-14474-DA
82	CE209 (BN)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 5 (INJ) +	7C3T-14474-DA
83	RE208 (BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) -	7C3T-14474-DA
84	CE208 (YE-OG)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) +	7C3T-14474-DA
85	*	*	Not Used	N/A
86	CE205 (GN-BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) +	7C3T-14474-DA
87	CE207 (VT-GY)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) +	7C3T-14474-DA
88	CE210 (GN-WH)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) +	7C3T-14474-DA
89	CE206 (GY-YE)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) +	7C3T-14474-DA
90	CE226 (YE-VT)	14	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	7C3T-14474-EA
91	RE205 (YE-BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) -	7C3T-14474-DA
92	RE207 (GN-VT)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) -	7C3T-14474-DA
93	RE210 (BN-VT)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 6 (INJ) -	7C3T-14474-DA
94	RE206 (BU-OG)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) -	7C3T-14474-DA
95	RE226 (GN-VT)	14	CTRL MOD. - POWERTRAIN # FUEL INJECTION PUMP (FVRRTN)	7C3T-14474-EA
