Connector End View (C1915B) - POWERTRAIN CONTROL MODULE (PCM)

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Connector: Description Color Harness Base Part # Service Pigtail
C1915B POWERTRAIN CONTROL MODULE (PCM) BK 12A581 part# N/A Not Available

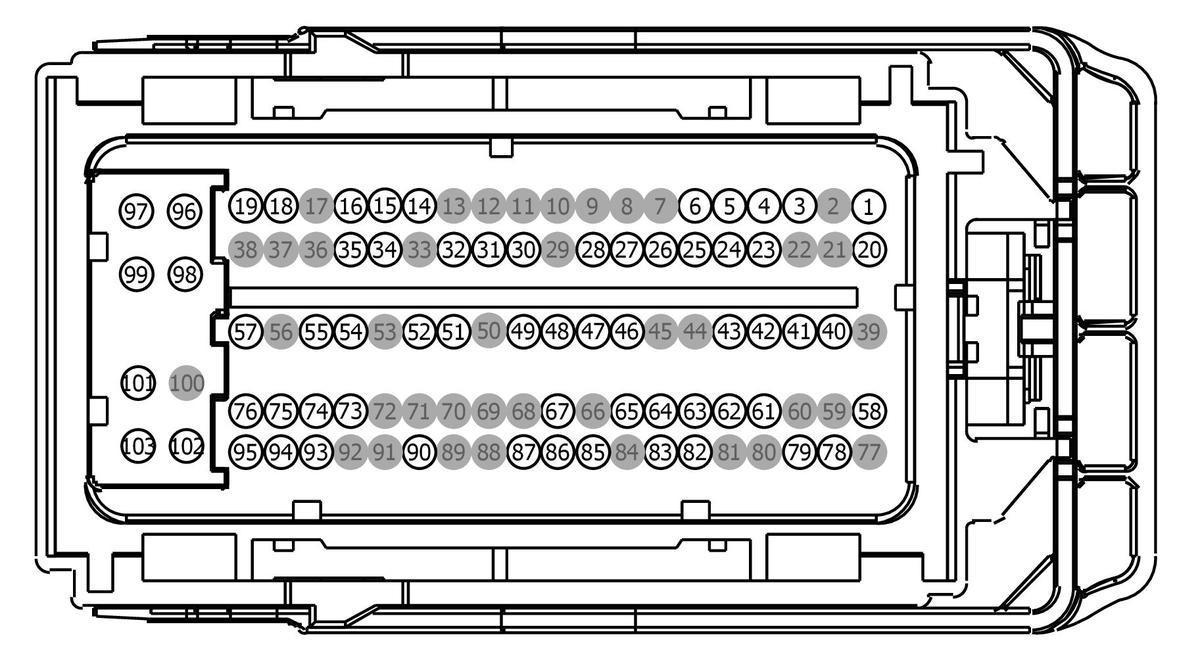

GFDWR82838Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
BU5T-14474-BB Not Available
BU5T-14474-AB DU2Z-14474-CA 0.64
BU5T-14474-UA DU2Z-14474-DA 1.5
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CE233 (WH-OG) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) BU5T-14474-BB
2 * * Not Used N/A
3 CETA7 (GY-YE) 22 CTRL MOD. - POWERTRAIN # ENGINE COOLANT BYPASS VALVE - TRANSMISSION HEATING (ECBV_TH) BU5T-14474-AB
4 CDC12 (YE) 22 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) BU5T-14474-AB
5 LE424 (YE-GN) 22 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE COWL (C-VREF) BU5T-14474-AB
6 RE230 (WH-VT) 22 CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER BU5T-14474-AB
7 * * Not Used N/A
8 * * Not Used N/A
9 * * Not Used N/A
10 * * Not Used N/A
11 * * Not Used N/A
12 * * Not Used N/A
13 * * Not Used N/A
14 LE137 (BU-GY) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2VREF) BU5T-14474-AB
15 RE137 (YE-GN) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APP2RTN) BU5T-14474-AB
16 LE230 (BN-BU) 22 CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (FTPTREF) BU5T-14474-AB
17 * * Not Used N/A
18 LE136 (GN-OG) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1VREF) BU5T-14474-AB
19 RE136 (VT-GN) 22 CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APP1RTN) BU5T-14474-AB
20 CE114 (GN-BU) 22 CTRL MOD. - POWERTRAIN # CANISTER VENT SOLENOID (CANVNT) BU5T-14474-AB
21 * * Not Used N/A
22 * * Not Used N/A
23 VE225 (YE-OG) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP MODULE COMMAND (FPC) BU5T-14474-AB
24 CE226 (YE-VT) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + BU5T-14474-AB
25 CE302 (YE-BU) 22 CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC) BU5T-14474-AB
26 CDC15 (GN) 22 GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI) BU5T-14474-AB
27 CE261 (GY-OG) 22 CTRL MOD. - POWERTRAIN # FUEL PUMP ON (FUEL_PUMP_ON) (IES) BU5T-14474-AB
28 CES09 (VT-OG) 22 SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + BU5T-14474-AB
29 * * Not Used N/A
30 RE407 (YE-VT) 22 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) BU5T-14474-AB
31 VE722 (BN) 22 SENSOR - EXHAUST GAS TEMPERATURE 1 (EGT1) (PRE CAT) BU5T-14474-AB
32 VE788 (BU-WH) 22 SENSOR - PARTICULATE FILTER PRESSURE OUTLET LEFT OR SINGLE (PFP_O) BU5T-14474-AB
33 * * Not Used N/A
34 VE740 (VT-GY) 20 SENSOR - INTAKE AIR TEMPERATURE (IAT) BU5T-14474-AB
35 VE751 (GY-VT) 20 SENSOR - INTAKE AIR TEMPERATURE 2ND (IAT2) BU5T-14474-AB
36 * * Not Used N/A
37 * * Not Used N/A
38 * * Not Used N/A
39 * * Not Used N/A
40 CE420 (GY-VT) 22 CTRL MOD. - POWERTRAIN # VAPOR MANAGEMENT VALVE (VAPOR BLOCKING - EVAPS) (VMV-CC) BU5T-14474-AB
41 CEC02 (GN-BU) 22 CTRL MOD. - COOLING FAN CONTROL (FC1) BU5T-14474-AB
42 CE170 (WH-BU) 22 CTRL MOD. - POWERTRAIN # ENGINE START SIGNAL BU5T-14474-AB
43 CE188 (BN) 22 CTRL MOD. - POWERTRAIN # CHARGE AIR COOLING FAN RELAY BU5T-14474-AB
44 * * Not Used N/A
45 * * Not Used N/A
46 RE407 (YE-VT) 22 CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C) BU5T-14474-AB
47 CDC35 (BU-WH) 22 SWITCH - IGNITION # START BU5T-14474-AB
48 CCB08 (VT-WH) 22 SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN BU5T-14474-AB
49 CET40 (GN-OG) 22 SWITCH - TRANSMISSION RANGE # PARK/NEUTRAL (TRSW-PN) BU5T-14474-AB
50 * * Not Used N/A
51 VE750 (GN-BU) 22 SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) BU5T-14474-AB
52 VH433 (VT-OG) 22 TRANSDUCER - A/C PRESSURE (ACPT) + BU5T-14474-AB
53 * * Not Used N/A
54 VE702 (BU-WH) 22 SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) BU5T-14474-AB
55 VE701 (YE-OG) 22 SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) BU5T-14474-AB
56 * * Not Used N/A
57 RE226 (GN-VT) 22 CTRL MOD. - POWERTRAIN # FUEL INJECTION PUMP (FVRRTN) BU5T-14474-AB
58 CE465 (YE-GY) 20 CTRL MOD. - POWERTRAIN # VACUUM SOLENOID VALVE (VSV) + BU5T-14474-AB
59 * * Not Used N/A
60 * * Not Used N/A
61 CDC10 (BU-OG) 22 CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC) BU5T-14474-AB
62 CDC54 (WH-GN) 22 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) BU5T-14474-AB
63 VE181 (WH-GN) 22 CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 BU5T-14474-AB
64 VE474 (BU-GN) 22 CTRL MOD. - POWERTRAIN # TRANSMISSION CAN BUS HIGH SPEED HIGH BU5T-14474-AB
65 VE475 (WH-VT) 22 CTRL MOD. - POWERTRAIN # TRANSMISSION CAN BUS HIGH SPEED LOW BU5T-14474-AB
66 * * Not Used N/A
67 VE518 (BN-WH) 22 MONITOR - FUEL PUMP (FPM) BU5T-14474-AB
68 * * Not Used N/A
69 * * Not Used N/A
70 * * Not Used N/A
71 * * Not Used N/A
72 * * Not Used N/A
73 VE922 (VT-GN) 22 TRANSDUCER - FUEL TANK PRESSURE (FTPT) BU5T-14474-AB
74 VE805 (GY-OG) 20 SENSOR - MANIFOLD TEMPERATURE + BU5T-14474-AB
75 RE731 (WH-OG) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (LSF_GND) BU5T-14474-BB
76 VE731 (YE-GN) 18 SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) BU5T-14474-BB
77 * * Not Used N/A
78 CE234 (BU-WH) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 2ND (HTR22) BU5T-14474-BB
79 VE462 (WH-BN) 22 CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE BU5T-14474-AB
80 * * Not Used N/A
81 * * Not Used N/A
82 CH302 (WH-BN) 22 CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) BU5T-14474-AB
83 CBB16 (BU-GN) 22 FUSE - 16 OR CIRCUIT BREAKER BU5T-14474-AB
84 * * Not Used N/A
85 CE436 (VT-OG) 22 CTRL MOD. -WAKE UP PCM BU5T-14474-AB
86 VDB05 (WH) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW BU5T-14474-AB
87 VDB04 (BU) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH BU5T-14474-AB
88 * * Not Used N/A
89 * * Not Used N/A
90 CR167 (YE-VT) 22 CTRL MOD. - FUEL SHUTOFF EVENT NOTIFICATION SIGNAL (ENS) BU5T-14474-AB
91 * * Not Used N/A
92 * * Not Used N/A
93 VE787 (WH-OG) 22 SENSOR - PARTICULATE FILTER PRESSURE OUTLET RIGHT (PFP_O) BU5T-14474-AB
94 RE733 (GN) 18 SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) BU5T-14474-BB
95 VE733 (WH) 18 SENSOR - HEATED OXYGEN POST CAT. 2ND (HO2S22) BU5T-14474-BB
96 GD113 (BK-YE) 20 GROUND - COWL TOP RIGHT BU5T-14474-UA
97 GD113 (BK-YE) 20 GROUND - COWL TOP RIGHT BU5T-14474-UA
98 GD113 (BK-YE) 20 GROUND - COWL TOP RIGHT BU5T-14474-UA
99 GD113 (BK-YE) 20 GROUND - COWL TOP RIGHT BU5T-14474-UA
100 * * Not Used N/A
101 CBB38 (GY-BU) 20 FUSE - 38 OR CIRCUIT BREAKER BU5T-14474-UA
102 CBB38 (GY-BU) 20 FUSE - 38 OR CIRCUIT BREAKER BU5T-14474-UA
103 CBB38 (GY-BU) 20 FUSE - 38 OR CIRCUIT BREAKER BU5T-14474-UA
