Connector End View (C1912) - INLINE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1912 | INLINE | BK | 14C21215K867 | See Below | ||||

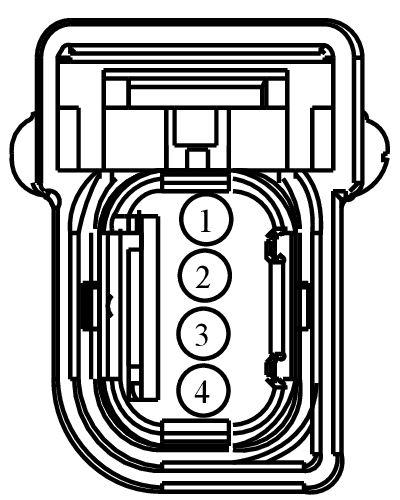

MALE
Harness
14C212

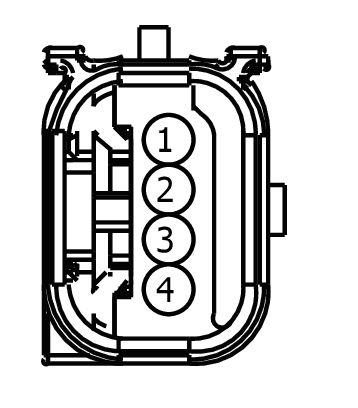

FEMALE
Harness
15K867
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14421-BA | EU2Z-14421-BA | 0.64 |
| DU5T-14474-EAB | DU2Z-14474-CA | 0.64 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CBB13 (GY-BN) | 22 | 9U5T-14421-BA | |||
| 2 | VMF05 (GY-BU) | 22 | 9U5T-14421-BA | |||
| 3 | VMF04 (BN-BU) | 22 | 9U5T-14421-BA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | CBB13 (GY-BN) | 22 | DU5T-14474-EAB | |||
| 2 | VMF05 (GY-BU) | 22 | DU5T-14474-EAB | |||
| 3 | VMF04 (BN-BU) | 22 | DU5T-14474-EAB | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1568
Service Part Number:
FU2Z-14S411-ANB
Gauge:
20
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Connector - Inline
- Lamp - Front Turn
- Switch - Keyless Door Handle
Pigtail Kit Part Number WPT-1443
Service Part Number:
FU2Z-14S411-ANA
Gauge:
20
Pin material:
Silver
Cavities:
4
Vehicle Uses:
- Antenna - Keyless Entry
- Lamp - Front Turn
- Lamp - Side Marker (Rear Fender)
- Switch - Keyless Door Handle
