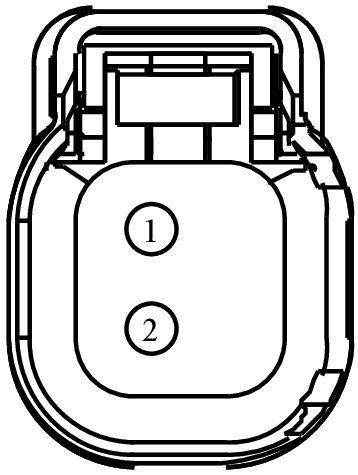

Connector End View (C1904) - FUEL INJECTOR 4B
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail |
|---|---|---|---|---|---|
| C1904 | FUEL INJECTOR 4B | BK | 14B485 | part# N/A | See Below |
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CE265 (WH) | 18 | CTRL MOD. - POWERTRAIN # FUEL INJECTOR CONTROL FEED 4 | 7C3T-14474-SA | ||||
| 2 | CBK01 (BU) | 18 | FUSE - 50 OR CIRCUIT BREAKER (VPWR 1) | 7C3T-14474-SA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1051
Service Part Number:
5U2Z-14S411-ZB
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- Fuel Injector
- Horn
- Switch - Backup Lamp
- Switch - Hood Ajar
