Connector End View (C1830) - INLINE
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Inline: | Description | Color | Harness | Base Part # | Service Pigtail | |||
|---|---|---|---|---|---|---|---|---|
| C1830 | INLINE | BK | 1552512A581 | See Below | ||||

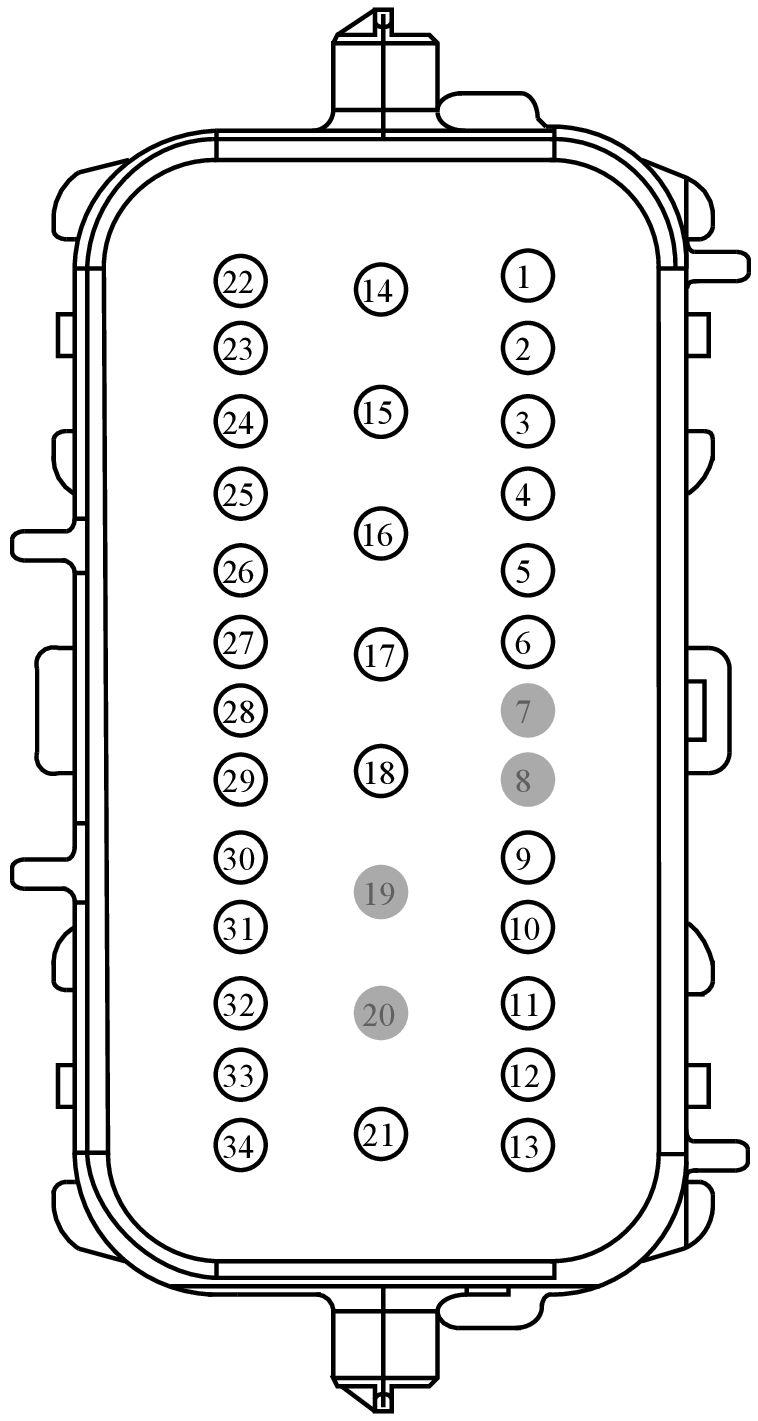

MALE
Harness
15525

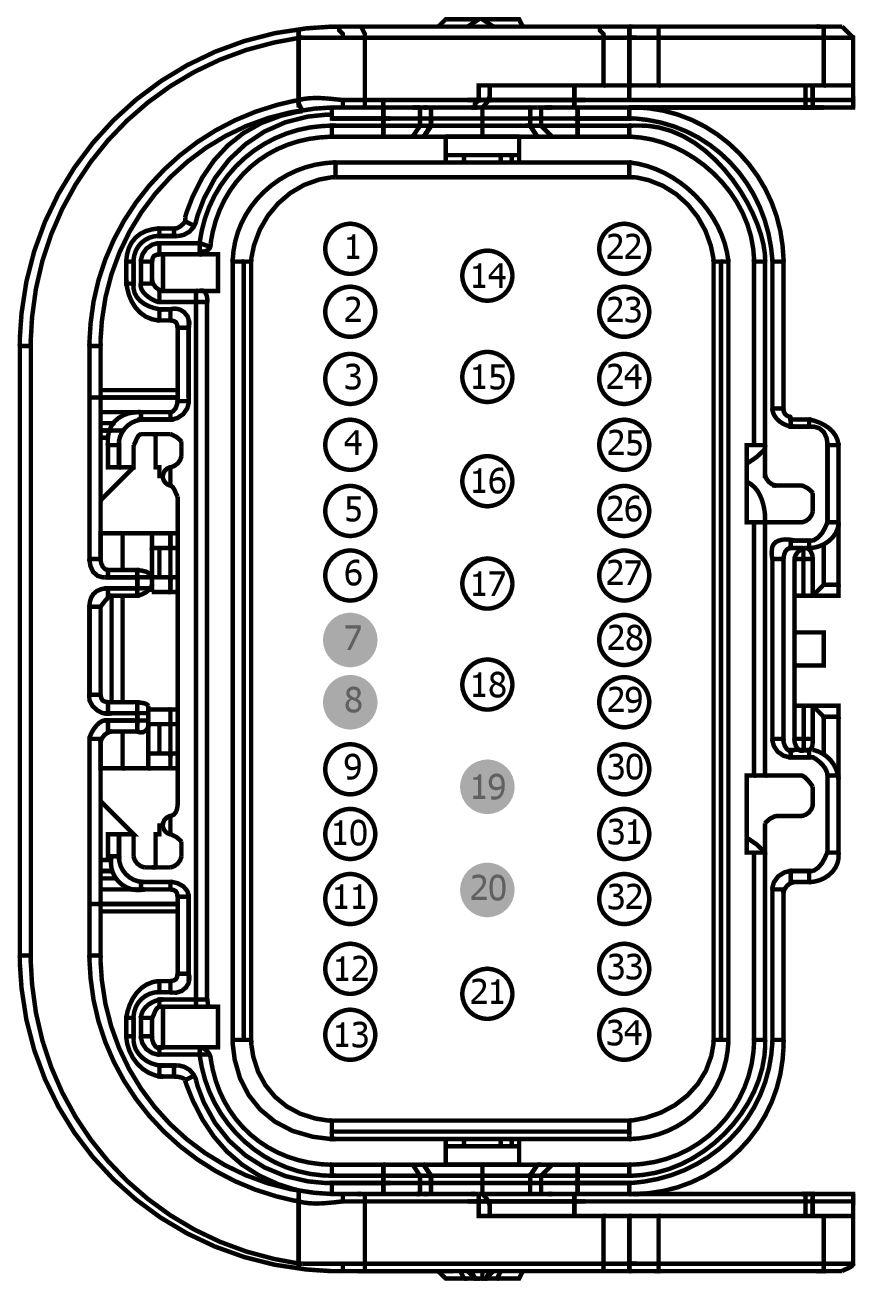

FEMALE
Harness
12A581
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| *F8VB-14474-BA | Not Available | |
| *BU5T-14421-BAA | Not Available | |
| 2L1T-14421-CA | EU2Z-14421-CA | 1.5 |
| 8U5T-14421-DA | EU2Z-14421-DA | 2.8 |
| BU5T-14421-HA | EU2Z-14421-CA | 1.5 |
| BU5T-14474-UA | DU2Z-14474-DA | 1.5 |
| F8VB-14474-BA | EU2Z-14474-AA | 2.8 |
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | VE733 (WH) | 18 | 2L1T-14421-CA | |||
| 2 | SBB83 (BU-RD) | 18 | 2L1T-14421-CA | |||
| 3 | CBB16 (BU-GN) | 20 | BU5T-14421-HA | |||
| 4 | VDB04 (BU) | 20 | BU5T-14421-HA | |||
| 5 | VDB05 (WH) | 20 | BU5T-14421-HA | |||
| 6 | CCF16 (VT-GN) | 20 | BU5T-14421-HA | |||
| 7 | * | * | N/A | |||
| 8 | * | * | N/A | |||
| 9 | CCF17 (WH-OG) | 20 | BU5T-14421-HA | |||
| 10 | CET40 (GN-OG) | 20 | BU5T-14421-HA | |||
| 11 | CBB98 (GY-OG) | 16 | 2L1T-14421-CA | |||
| 12 | CBK02 (GN) | 18 | 2L1T-14421-CA | |||
| 13 | VE731 (YE-GN) | 18 | 2L1T-14421-CA | |||
| 14 | RE733 (GN) | 18 | *BU5T-14421-BAA | |||
| 15 | CE233 (WH-OG) | 18 | *BU5T-14421-BAA | |||
| 16 | RE731 (WH-OG) | 18 | *BU5T-14421-BAA | |||
| 17 | CCF07 (BN-GN) | 16 | 8U5T-14421-DA | |||
| 18 | CCF08 (GY-OG) | 16 | 8U5T-14421-DA | |||
| 19 | * | * | N/A | |||
| 20 | * | * | N/A | |||
| 21 | CBK02 (GN) | 18 | *BU5T-14421-BAA | |||
| 22 | RE406 (GY-VT) | 20 | BU5T-14421-HA | |||
| 23 | CET34 (BN-GN) | 20 | BU5T-14421-HA | |||
| 24 | VDB04 (BU) | 20 | BU5T-14421-HA | |||
| 25 | VDB05 (WH) | 20 | BU5T-14421-HA | |||
| 26 | CET42 (GN-VT) | 20 | BU5T-14421-HA | |||
| 27 | CET43 (GY) | 20 | BU5T-14421-HA | |||
| 28 | VE474 (BU-GN) | 20 | BU5T-14421-HA | |||
| 29 | VE475 (WH-VT) | 20 | BU5T-14421-HA | |||
| 30 | CCF15 (BN-YE) | 20 | BU5T-14421-HA | |||
| 31 | CCF14 (GN-OG) | 20 | BU5T-14421-HA | |||
| 32 | CCF03 (GY-BN) | 20 | BU5T-14421-HA | |||
| 33 | RCF09 (BN-WH) | 20 | BU5T-14421-HA | |||
| Pin | Circuit | Gauge | Qualifier | Terminal Part Number | ||
| 1 | VE733 (WH) | 18 | 7C3T-14474-DA | |||
| 2 | SBB83 (BU-RD) | 18 | 7C3T-14474-DA | |||
| 3 | CBB16 (BU-GN) | 22 | BU5T-14474-UA | |||
| 4 | VDB04 (BU) | 22 | BU5T-14474-UA | |||
| 5 | VDB05 (WH) | 22 | BU5T-14474-UA | |||
| 6 | CCF16 (VT-GN) | 22 | BU5T-14474-UA | |||
| 7 | * | * | N/A | |||
| 8 | * | * | N/A | |||
| 9 | CCF17 (WH-OG) | 22 | BU5T-14474-UA | |||
| 10 | CET40 (GN-OG) | 22 | BU5T-14474-UA | |||
| 11 | CBB98 (GY-OG) | 18 | 7C3T-14474-DA | |||
| 12 | CBK02 (GN) | 18 | 7C3T-14474-DA | |||
| 13 | VE731 (YE-GN) | 18 | 7C3T-14474-DA | |||
| 14 | RE733 (GN) | 18 | *F8VB-14474-BA | |||
| 15 | CE233 (WH-OG) | 18 | *F8VB-14474-BA | |||
| 16 | RE731 (WH-OG) | 18 | *F8VB-14474-BA | |||
| 17 | CCF07 (BN-GN) | 16 | F8VB-14474-BA | |||
| 18 | CCF08 (GY-OG) | 16 | F8VB-14474-BA | |||
| 19 | * | * | N/A | |||
| 20 | * | * | N/A | |||
| 21 | CBK02 (GN) | 16 | F8VB-14474-BA | |||
| 22 | RE406 (GY-VT) | 22 | BU5T-14474-UA | |||
| 23 | CET34 (BN-GN) | 22 | BU5T-14474-UA | |||
| 24 | VDB04 (BU) | 22 | BU5T-14474-UA | |||
| 25 | VDB05 (WH) | 22 | BU5T-14474-UA | |||
| 26 | CET42 (GN-VT) | 22 | BU5T-14474-UA | |||
| 27 | CET43 (GY) | 22 | BU5T-14474-UA | |||
| 28 | VE474 (BU-GN) | 22 | BU5T-14474-UA | |||
| 29 | VE475 (WH-VT) | 22 | BU5T-14474-UA | |||
| 30 | CCF15 (BN-YE) | 22 | BU5T-14474-UA | |||
| 31 | CCF14 (GN-OG) | 22 | BU5T-14474-UA | |||
| 32 | CCF03 (GY-BN) | 20 | BU5T-14474-UA | |||
| 33 | RCF09 (BN-WH) | 22 | BU5T-14474-UA | |||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1606
Service Part Number:
KU2Z-14S411-SA
Gauge:
14 16
Pin material:
Tin & Silver
Cavities:
34
Vehicle Uses:
- Connector - Inline
Pigtail Kit Part Number WPT-1607
Service Part Number:
KU2Z-14S411-TA
Gauge:
14 16
Pin material:
Tin (Greased) & Silver
Cavities:
34
Vehicle Uses:
- Connector - Inline
